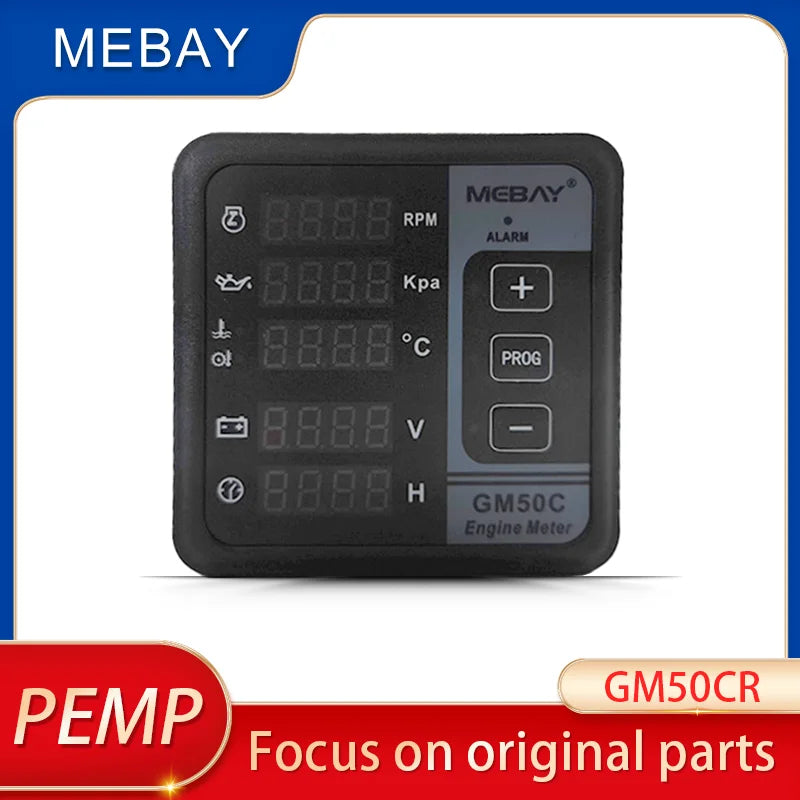

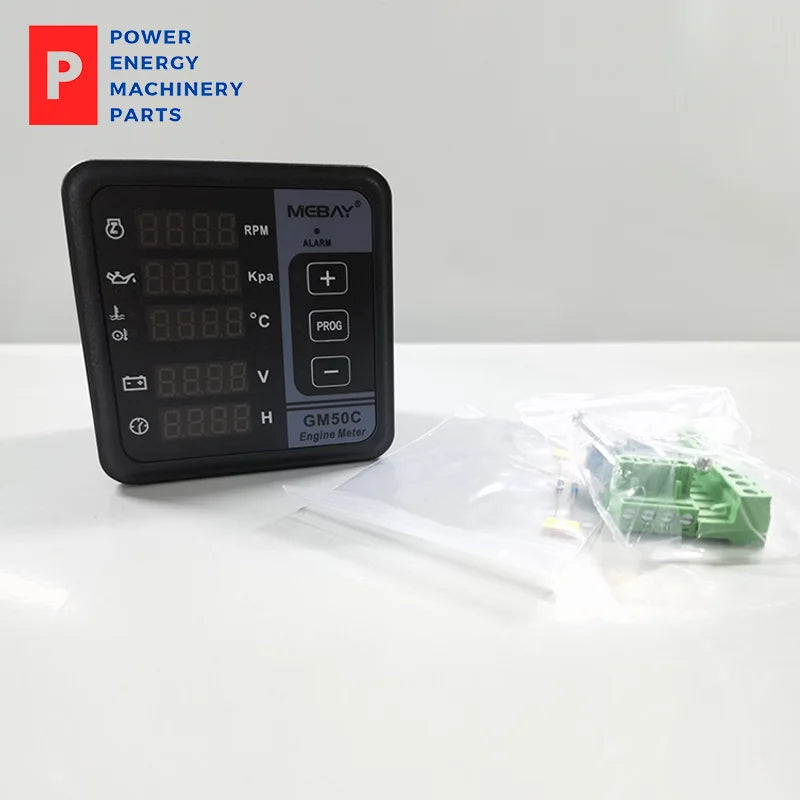

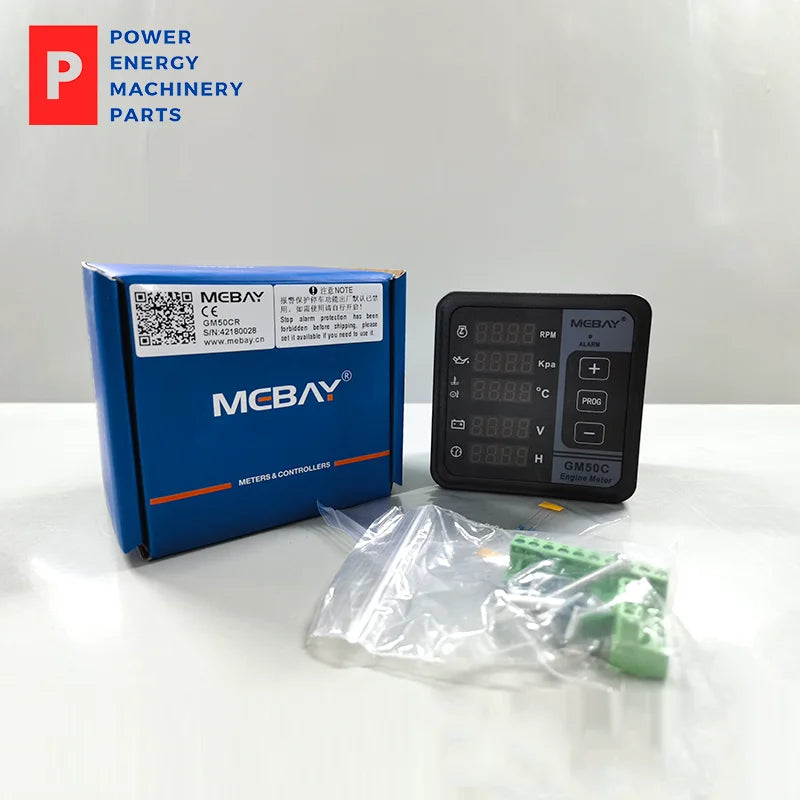

Original Mebay GM50CR Engine Digital Display Multifunction Meter CAN RS485 Port Remote Monitoring Multi-function Panel

Original Mebay GM50CR Engine Digital Display Multifunction Meter CAN RS485 Port Remote Monitoring Multi-function Panel

GM50C is a lightweight, low-cost module used to measure and display engine speed, water temperature, oil temperature, oil pressure, battery voltage and accumulated engine running time. Standard CAN communication interface, built-in J1939 protocol, compatible with most EFI engines. Parameters can be adjusted and set through buttons to meet the needs of different applications. In addition, European-style terminal wiring is used to facilitate the installation and removal of modules.

GM50C series meters are available in two models:

GM50C: reads engine parameters through CAN interface and built-in J1939 protocol, has alarm protection function, and modifies parameters through buttons;

GM50CR: An RS485 interface is added on the basis of GM50C, which can monitor engine parameters and set operating parameters through PC software, and can connect to remote replica instruments to view parameters;

Specifications

Power supply: DC8~36V;

Power consumption: MAX1.5W;

Alarm output: Passive contact output, maximum DC1A;

Operating environment temperature: -20~65℃;

Storage environment temperature: -40~85℃;

Protection level: IP54 (front panel after installation);

Overall dimensions (W * H * D): 100mm*100mm*77mm;

Opening size (W * H): 91mm*91mm;

Weight: 150 g.
