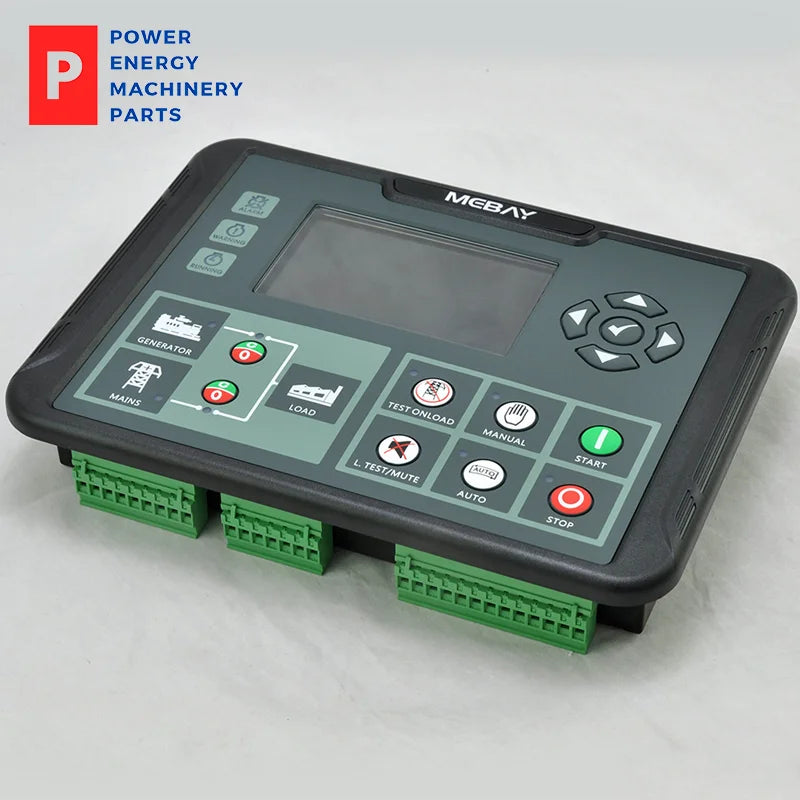

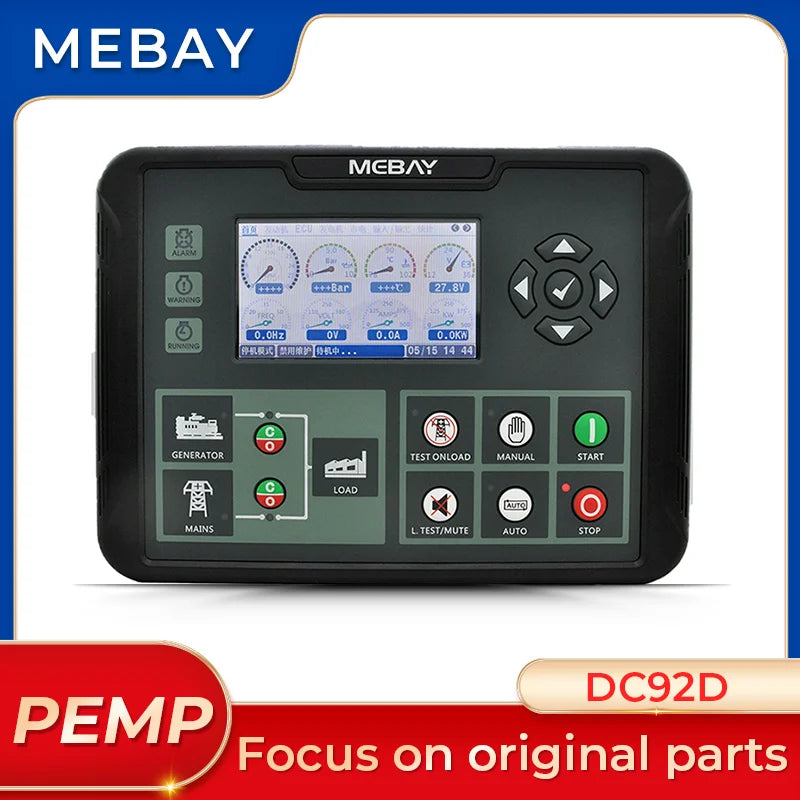

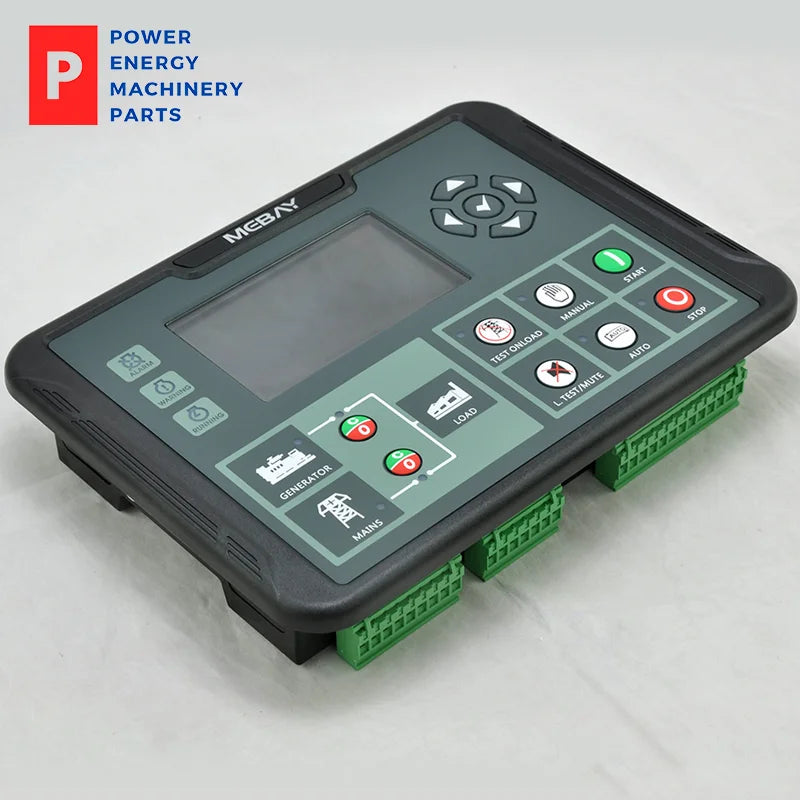

Original Mebay DC92D Generator Controller LCD Display Self start Control Board Diesel Generator Set Spare Parts
Original Mebay DC92D Generator Controller LCD Display Self start Control Board Diesel Generator Set Spare Parts
Couldn't load pickup availability
Original Mebay DC92D Generator Controller LCD Display Self start Control Board Diesel Generator Set Spare Parts
This series of controllers is specially designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline, and gas generator sets and has parameter setting functions.
This controller uses a 4.3-inch TFT color large-screen LCD to display relevant parameters of the generator set. It has a new and original UI design. The parameters are displayed through analog pointers and numbers. The LCD screen can display multiple current fault states at the same time, and can effectively implement protective shutdown when the generator set is not working properly.
The controller has built-in simplified Chinese, traditional Chinese, English, Spanish, and Russian display interfaces to choose from, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the buttons on the controller panel, or adjusted and monitored using a PC through the USB port or RS485 interface. It can be widely used in various types of generator set automation systems.
2. Performance and features
The DC9xD series is available in four models:
DC90D: used for stand-alone automation, controlling the automatic starting and stopping of the generator set through remote start signals;
DC92D: Based on DC90D, it adds mains monitoring and mains/generator automatic switching control (AMF) functions, and is suitable for a single-machine automation system consisting of one mains supply and one generator set;
DC90DR: Add RS485 interface on the basis of DC90D;
DC92DR: Add RS485 interface on the basis of DC92D;
3. Parameter specifications
project
Parameters
Operating Voltage
DC9V to 36V continuous power supply
Machine power consumption
Standby: 24V: MAX 1W
Operation: 24V: MAX 5W
AC voltage input
One phase two wires 30VAC-276VAC (ph-N)
Two-phase three-wire 30VAC-276VAC (ph-N)
Three-phase four-wire 30VAC-276VAC (ph-N)
Engine speed signal range
200-10000Hz
Maximum cumulative running time
99999.9 hours (minimum storage time 6 minutes)
fuel output
Max 16Amp DC+VE supply voltage output
Motor output
Max 16Amp DC+VE supply voltage output
Configurable relay 1
Max 16Amp passive normally closed output
Configurable relay 2
Max 16Amp passive normally open output
Configurable relay 3
Max 5Amp DC+VE supply voltage output
Configurable relay 4
Max 5Amp DC+VE supply voltage output
Configurable relay 5
Max 5Amp DC+VE supply voltage output
Configurable relay 6
Max 5Amp DC+VE supply voltage output
Configurable relay 7
Max 5Amp DC+VE supply voltage output
Configurable relay 8
Max 5Amp DC+VE supply voltage output
Excitation output
Maximum 0.9Amp DC+VE supply voltage output
Switch input
Effective when connected to the negative pole of the battery
working conditions
-25-65℃
storage conditions
-40-85℃
Protection level
IP54: When a waterproof ring is installed between the controller and the control panel.
Insulation level
When AC2.2kV voltage is applied between the AC high-voltage terminal and the low-voltage terminal, the leakage current shall not exceed 3mA within 1 minute.
Dimensions
241mm*177mm*45mm
Hole Size
220mm*160mm
weight
1Kg
