Original GV59R Mebay Generator 3 Phase Current Controller With RS485 Interface Multi Function Digital Meter

Original GV59R Mebay Generator 3 Phase Current Controller With RS485 Interface Multi Function Digital Meter

Overview

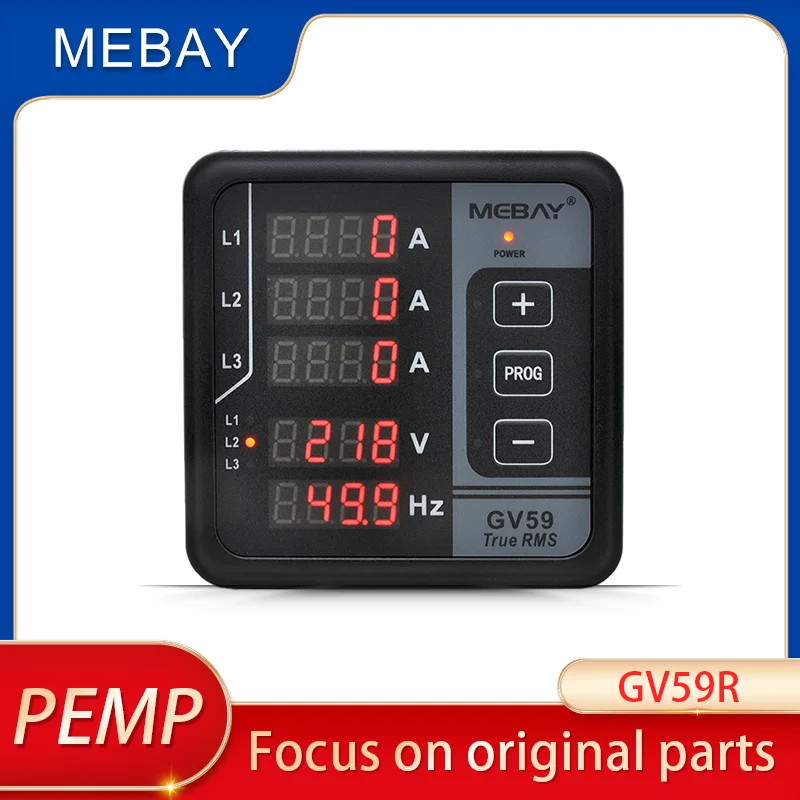

  GV59 is a voltage and current detection instrument for three-phase generators. It has 5 high-brightness LED screens to display relevant parameters. It has an optional RS485 communication port to read more parameters. System parameters can be set according to the buttons to suit different applications.

  There are two models of GV59 series instruments:

    GV59: AC power supply, can sample and display three-phase AC voltage, three-phase AC current and other parameters;

    GV59R: Based on GV59, an RS485 interface is added to monitor relevant parameters and setting parameters through PC software.

Specifications

  Working power supply voltage: AC165-275V;

  Power consumption: MAX 3W;

  Operating environment temperature: -25～65℃;

  Storage environment temperature: -40~85℃;

  Protection level: IP54 (front panel after installation);

  Overall dimensions: 100mm*100mm*77mm

  Opening size: 91mm*91mm;

  Weight: 320g
