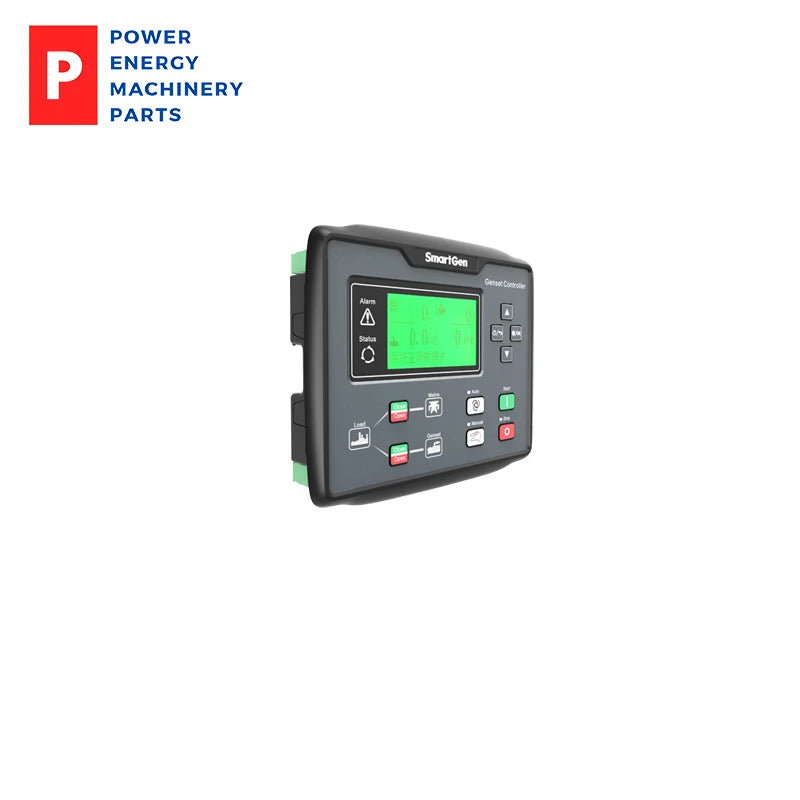

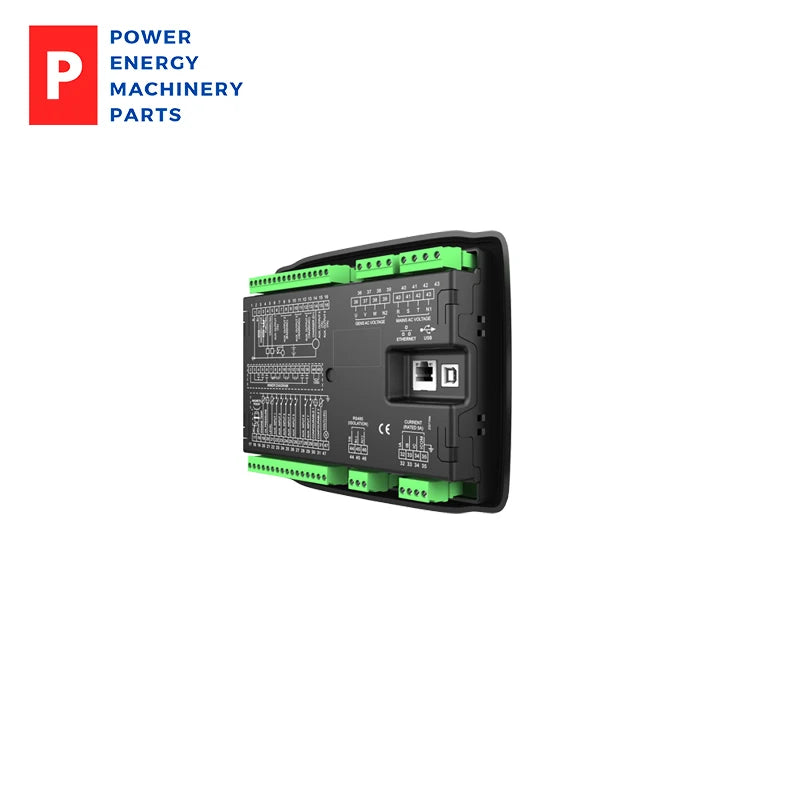

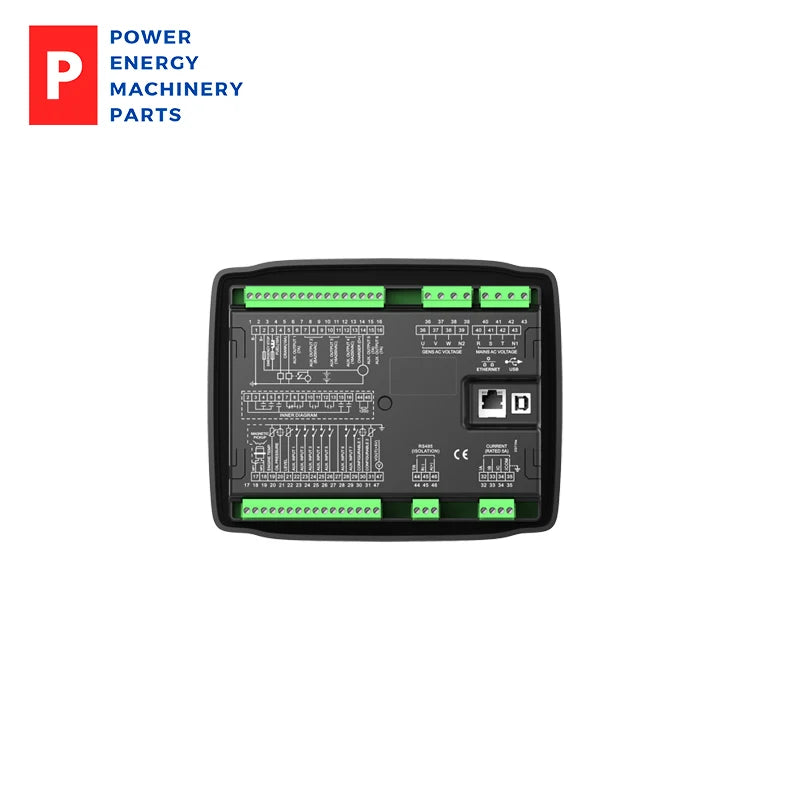

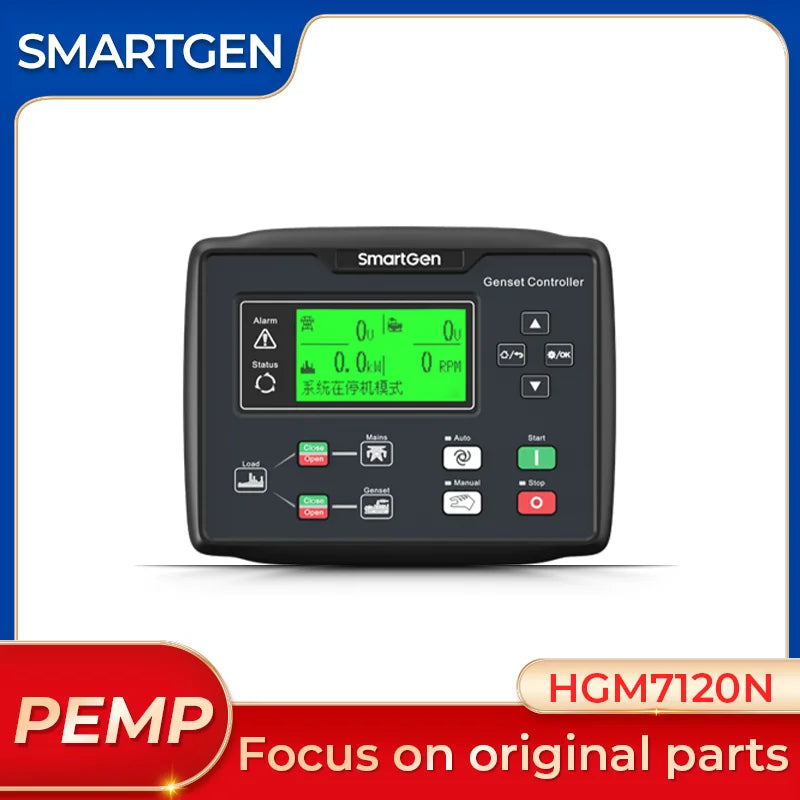

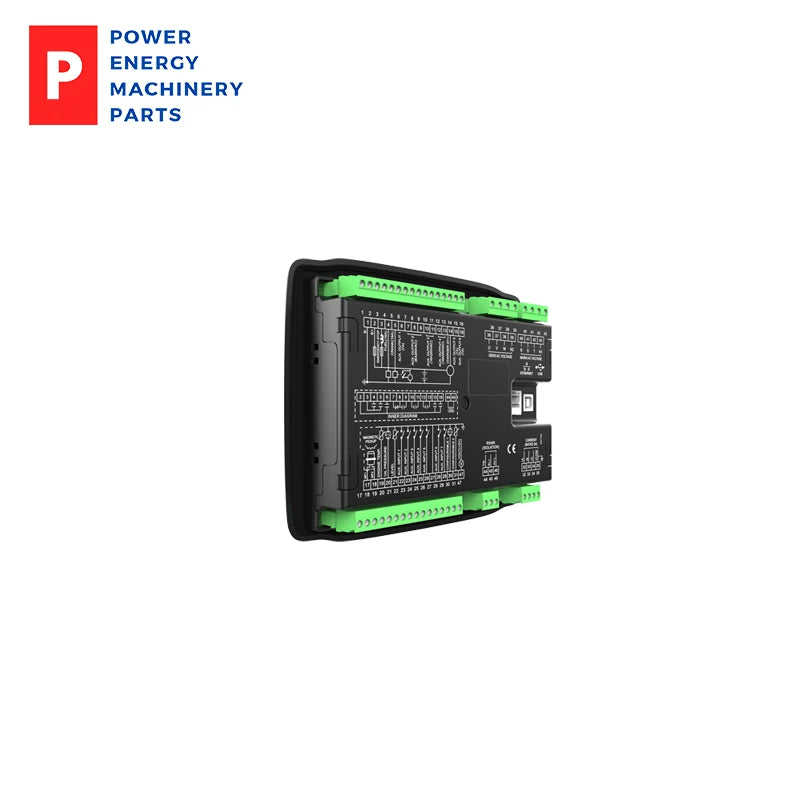

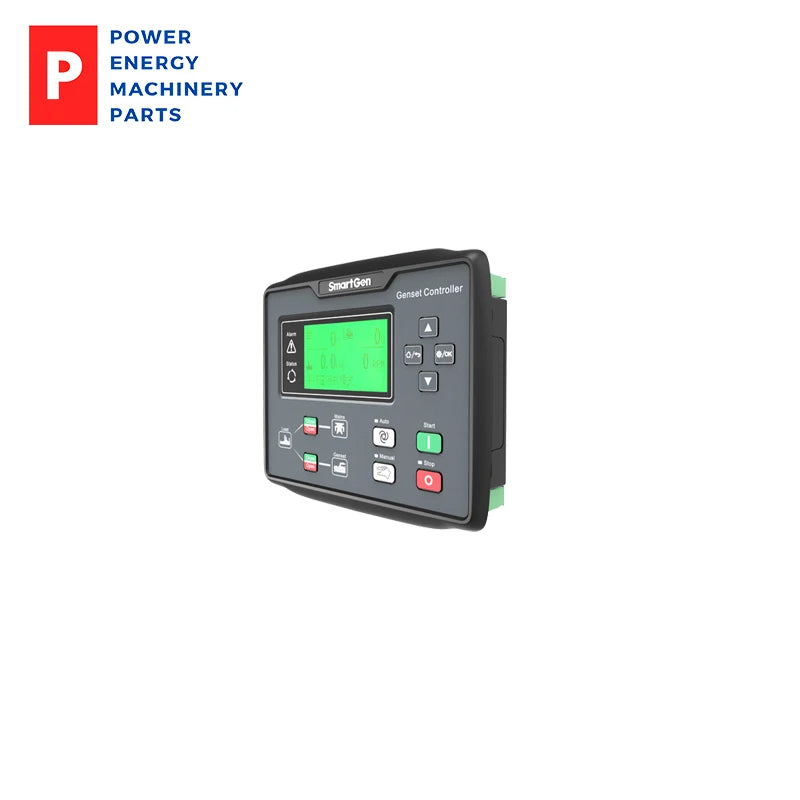

Original Genuine Smartgen HGM7120N AMF Auto Start Generator Controller Power Station Automation Monitor Panel

HGM7120N

AMF+USB+RS485+ETHERNET

Working PowerRange : DC(8-35)V

Overall Dimension : 209*166*45

Installation Dimension : 186*141

Working Temperature : (-25~+70)℃

weight : 0.6kg

HGM7110N/HGM7120N series power station automation controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single diesel unit to achieve remote start/stop, data measurement, alarm protection and etc. functions. It fit with LCD display, optional languages interface (Chinese, English and etc.), and it is reliable and easy to use.

HGM7110N/HGM7120N series power station automation controllers adopt 32-bit micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc. Almost parameters can be configured from front panel of controller, and all parameters can be adjusted through PC software via USB/RS485 port and monitored through PC software via RS485. It can be widely used in all types of genset control automation system with compact structure, simple connections and high reliability.
