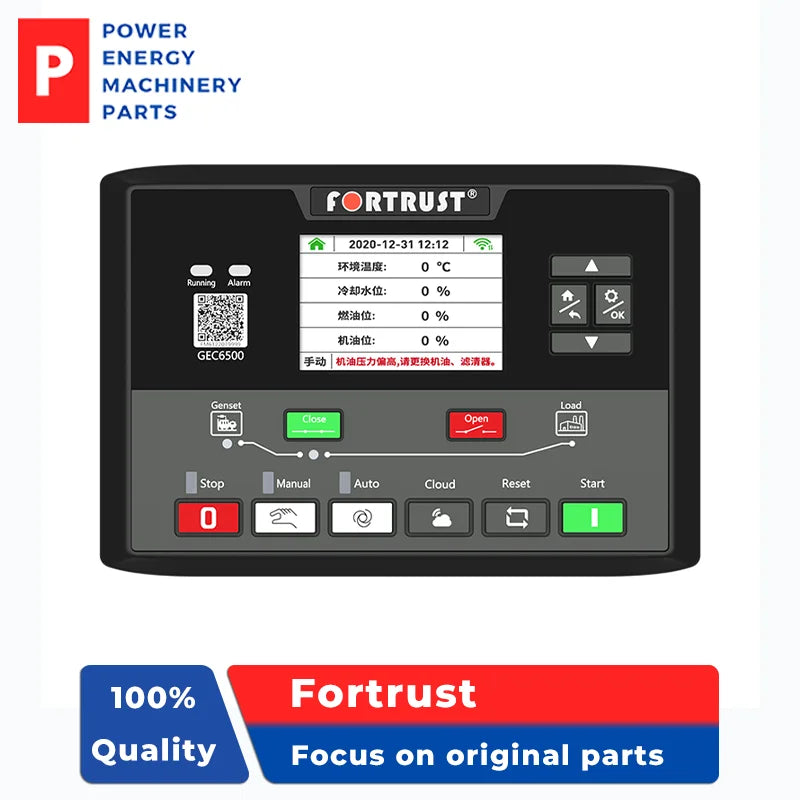

Original Generator Spare Parts GEC6510-458-CAN CAN Interface rs485 Remote Control Panel

Working voltage: DC 8V-35V continuous power supply

Overall power consumption: <3W (≤2W in standby)

Alternator voltage input:

Three-phase four-wire: 15VAC-360VAC (ph-N)

Single-phase two-wire 15VAC-360VAC (ph-N)

Two-phase three-wire 15VAC-360VAC (ph-N)

Alternator frequency: 50Hz/60Hz

Speed sensor voltage: 1.0V to 24V (effective value)

Speed sensor frequency: maximum 10000Hz

Starting relay output: 16Amp DC28V DC power supply output

Fuel relay output: 16Amp DC28V DC power supply output

Programmable relay output 1-4:

10Amp DC30V DC power supply output

10Amp DC30V passive output/250VAC passive output

10Amp DC30V passive output/250VAC passive output

10Amp DC30V passive output/250VAC passive output

Operation panel size: 197mmx152mm x51mm

Recommended hole size: 184mm x138mm

(Module size 183mm x137mm)

Current transformer secondary current: Rated: 5A

Working conditions: temperature (-25~70)℃ humidity (20~90)%

Storage conditions: temperature (-30~+80)℃

Protection level: IP55 (when installed between the controller and control panel

Waterproof rubber ring)

IP42 (when there is no

When installing a waterproof rubber ring)

Dielectric strength: Object: Between input/output/power supply

Reference standard: IEC688-1992

Test method: AC1.5KV/1min leakage current 3mA
