Original Generator Controller IGS-PTM Analog/Binary Input/Output Extension Module
Original Generator Controller IGS-PTM Analog/Binary Input/Output Extension Module
Regular price
$2,846.00 USD
Regular price
$0.00 USD
Sale price
$2,846.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

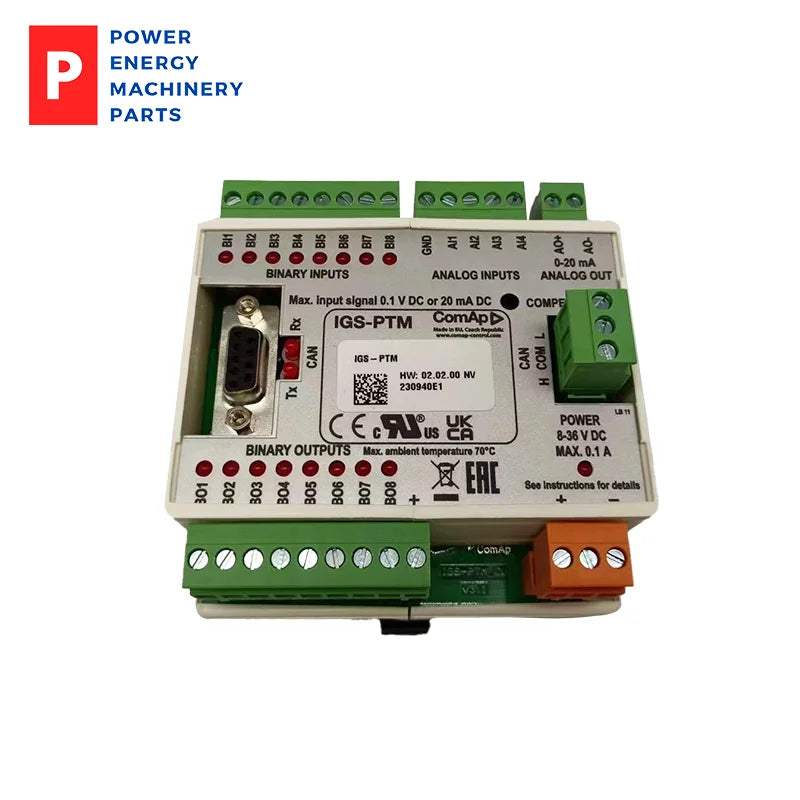

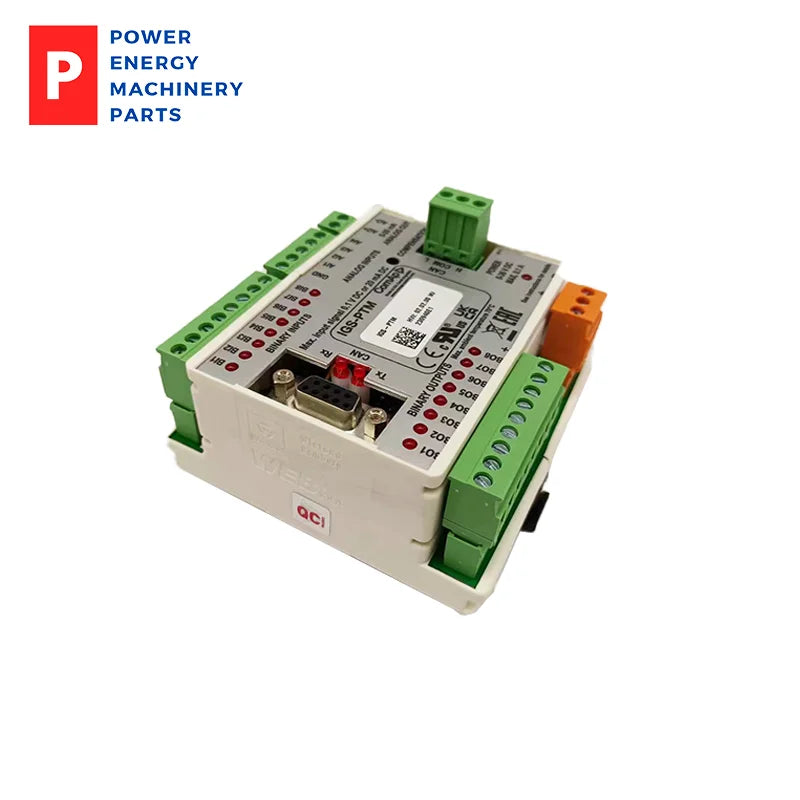

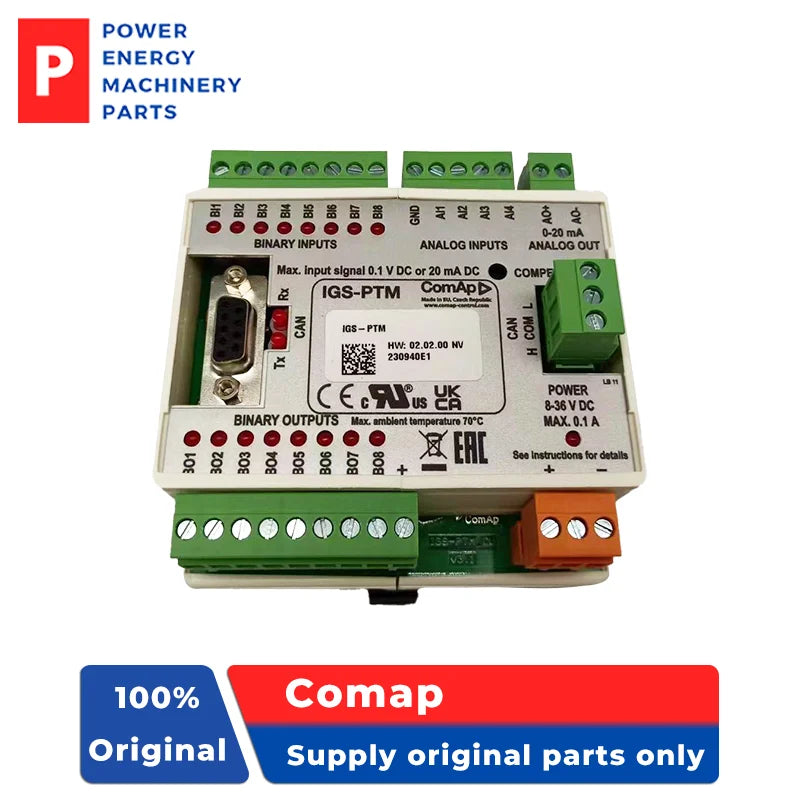

Original Generator Controller IGS-PTM Analog/Binary Input/Output Extension Module
Configurable 8 binary and 4 analogue inputs
Configurable 8 binary and 1 analogue output
LEDs indicate the state of binary inputs/outputs
Measures values from Pt100 and Ni100 sensors
Analogue inputs (resistance range 0-250 Ohms, voltage range 0-100mV, current range 0-20mA - selectable via jumper)
Up to 4 IGS-PTM can be connected to the controller
UL certified
