Original DSE9461 ATS Generator Battery Charger 24Volt 10Amp Enclosed Charger DSE 9461

Original DSE9461 ATS Generator Battery Charger 24Volt 10Amp Enclosed Charger DSE 9461

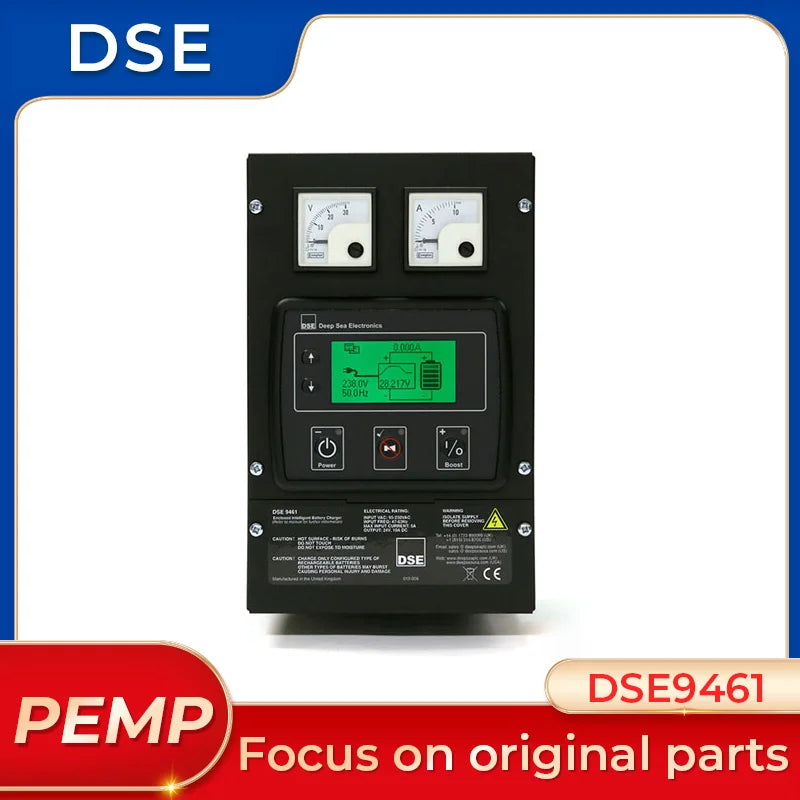

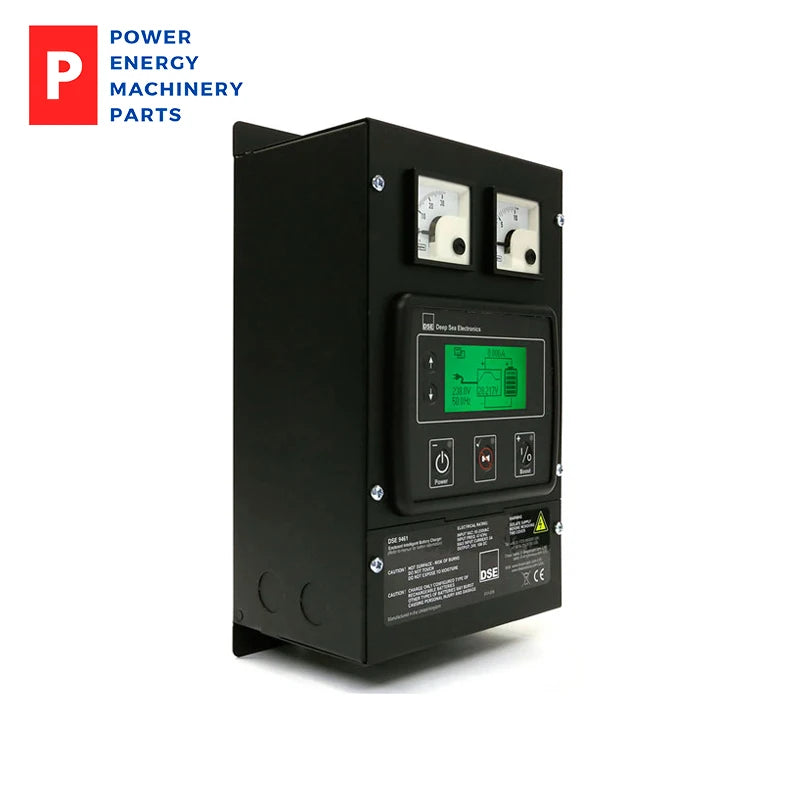

DSE9461

12/24 volt 10 amp Enclosed Intelligent Battery Charger

NFPA 110 and NFPA 20 (QWIR) COMPLIANT

The DSE9461 is an intelligent enclosed battery charger that has been developed to offer the highest levels of safety, usability and battery life and performance. The charger can be used straight out of the box or connected to a PC via a USB cable to modify the pre-set charging curves. The charging curve can be selected from the PC software or user created for advanced battery applications.

The charger can be used as a power supply and includes a high number of input/output protections as standard.  The charger also has the ability to connect to an external system via MODBUS RTU, using RS485.

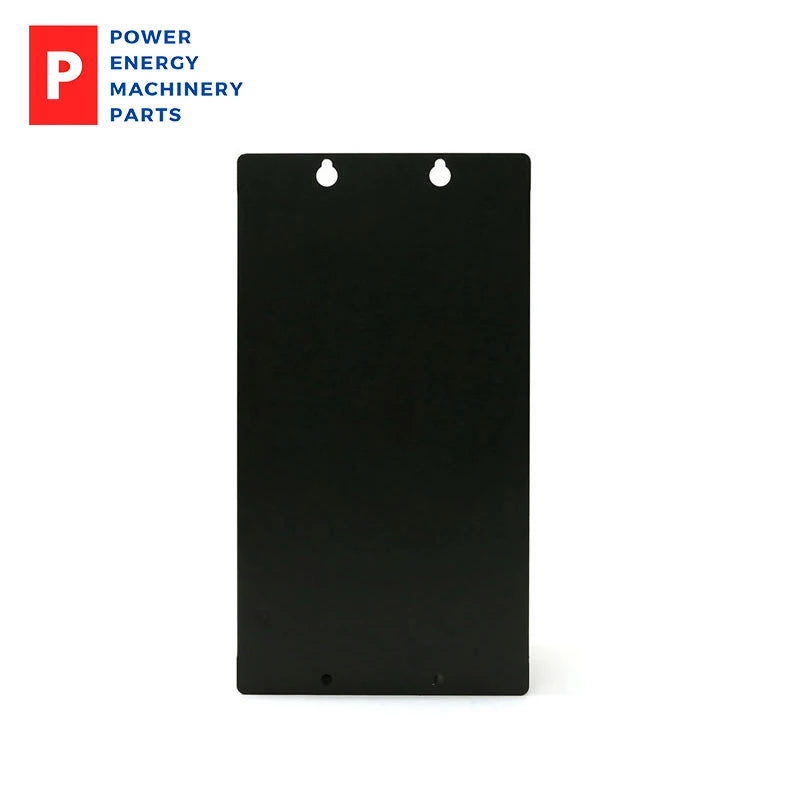

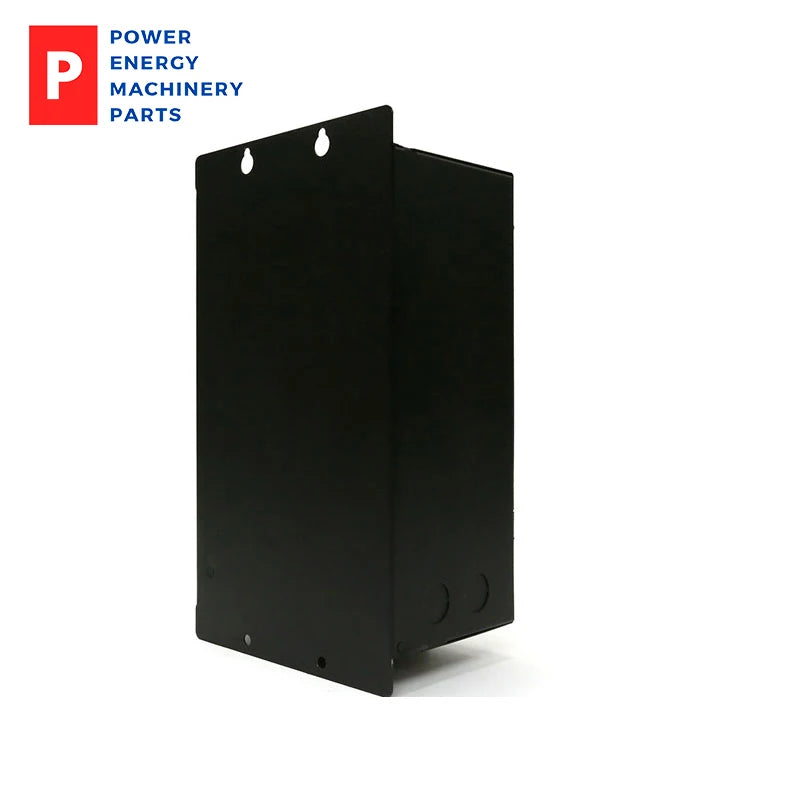

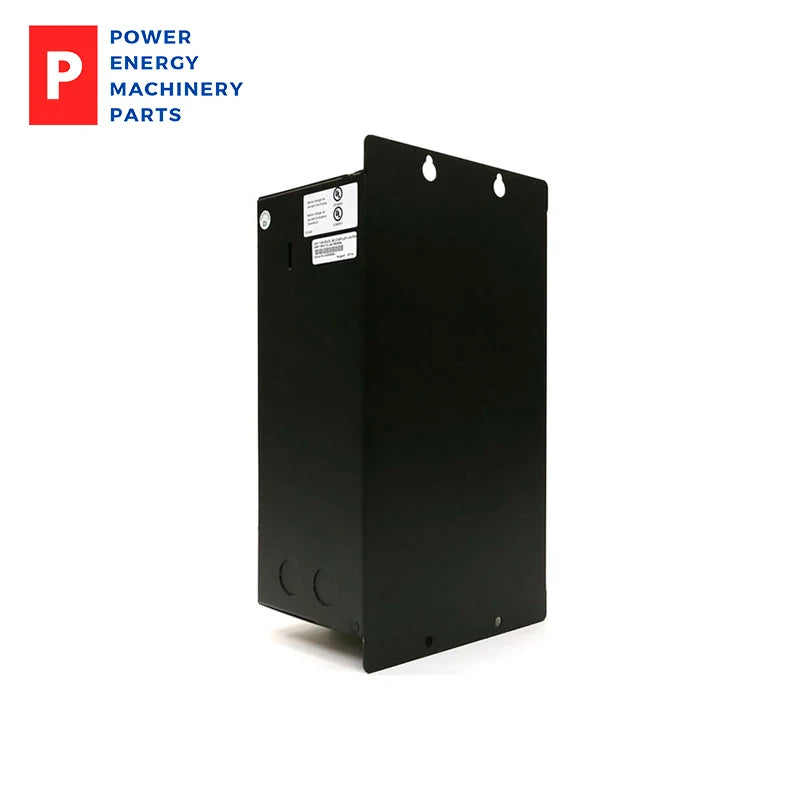

OVERALL SIZE
165 mm x 305 mm x 110 mm (6.5” x 12.0” x 4.3”)
WEIGHT
2.3kg
PRODUCT VARIANTS
9461-01 - 12 volt 10 amp Enclosed Intelligent Battery Charger (Display)
9461-02 - 12 volt 10 amp Enclosed Intelligent Battery Charger (Display & Meters)
9461-11 - 24 volt 10 amp Enclosed Intelligent Battery Charger (Display)
9461-12 - 24 volt 10 amp Enclosed Intelligent Battery Charger (Display & Meters)
