Original DSE7420 MKII Automatic Utility Fault Control Module Generator Controllers DSE7420MKII

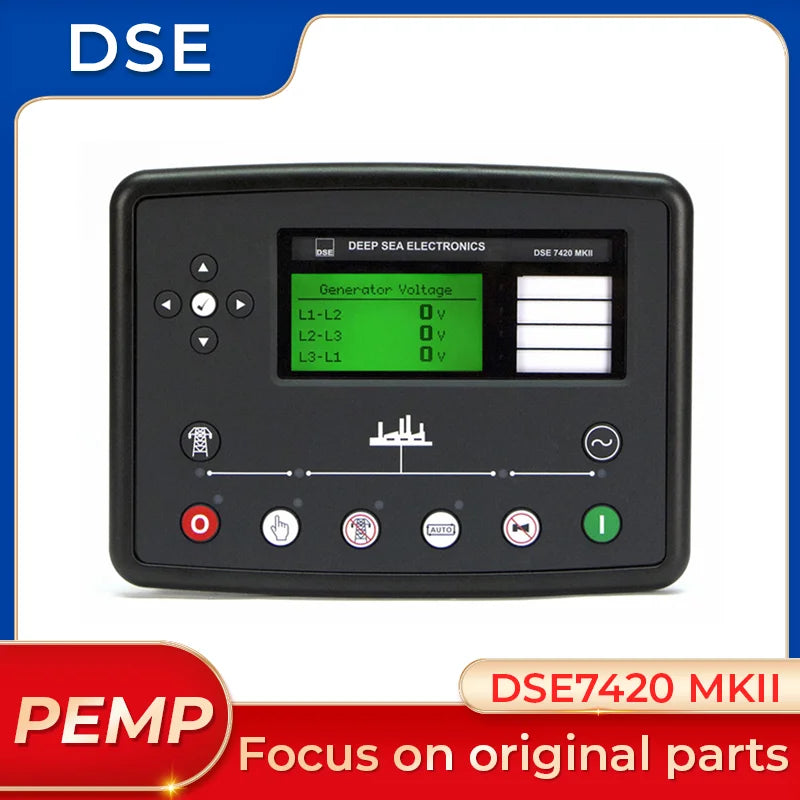

DSE7420 MKII
Auto Mains (Utility) Failure Control Module
The DSE7420 MKII is an intelligent, powerful auto mains (utility) failure control module with high-level features and functionality. The control module is the first module in the DSE range to include in-built SNMP and features an embedded web server. The module is suitable for a wide range of single-set gas and diesel applications.
The control module features an enhanced dual core main processor and extended memory capacity. This allows the module to deliver a faster more powerful performance to return quicker operating responses on complex applications and provides enhanced memory storage for high level data logging functionality.
OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6” x 7.2” x 2.0”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.88kg
PRODUCT VARIANTS
7420-03 - 7420 MKII Auto Mains (Utility) Failure Control Module
