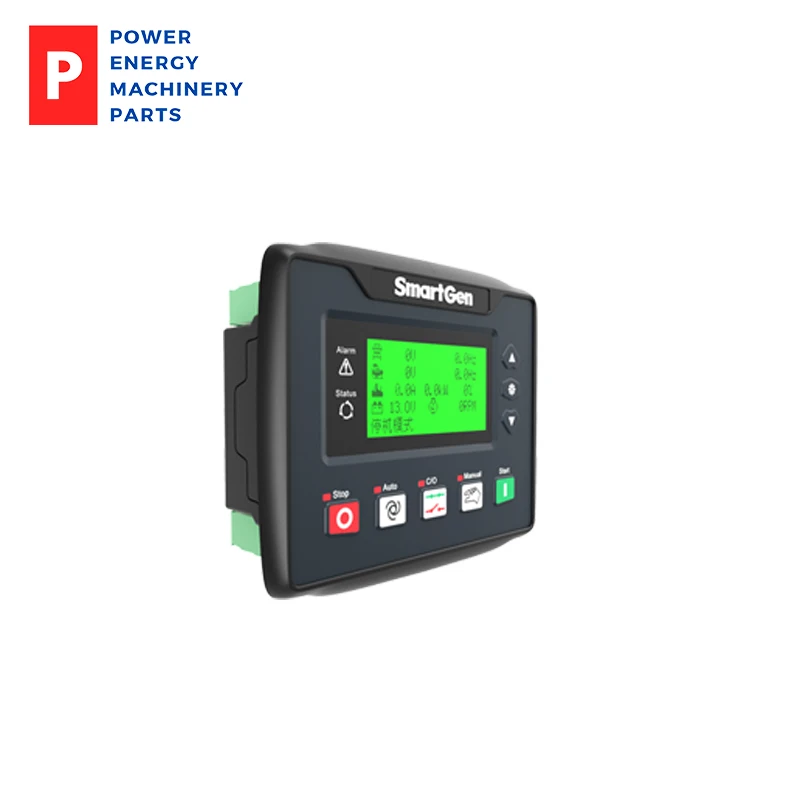

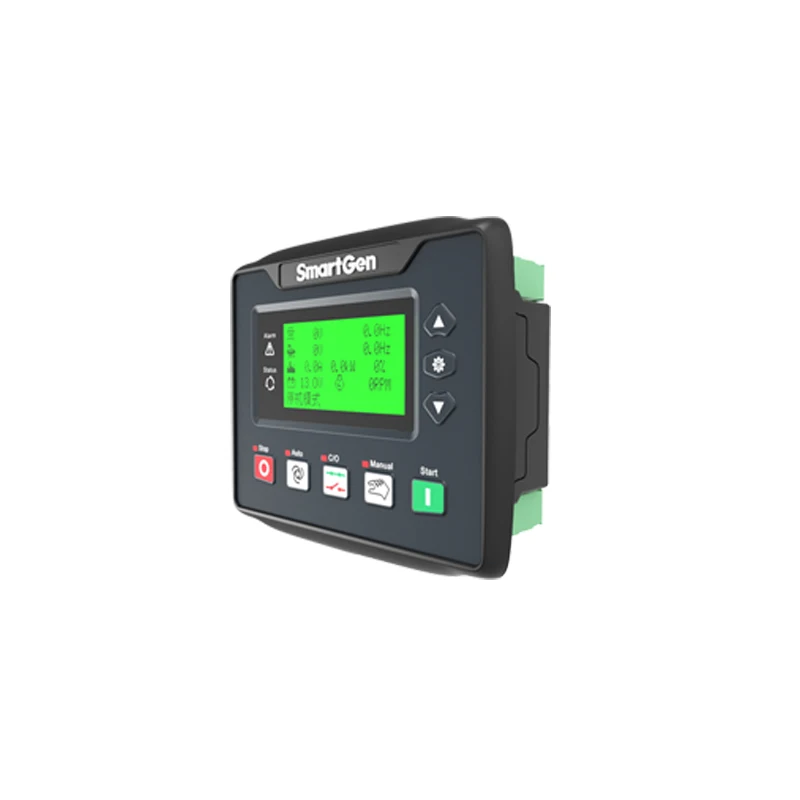

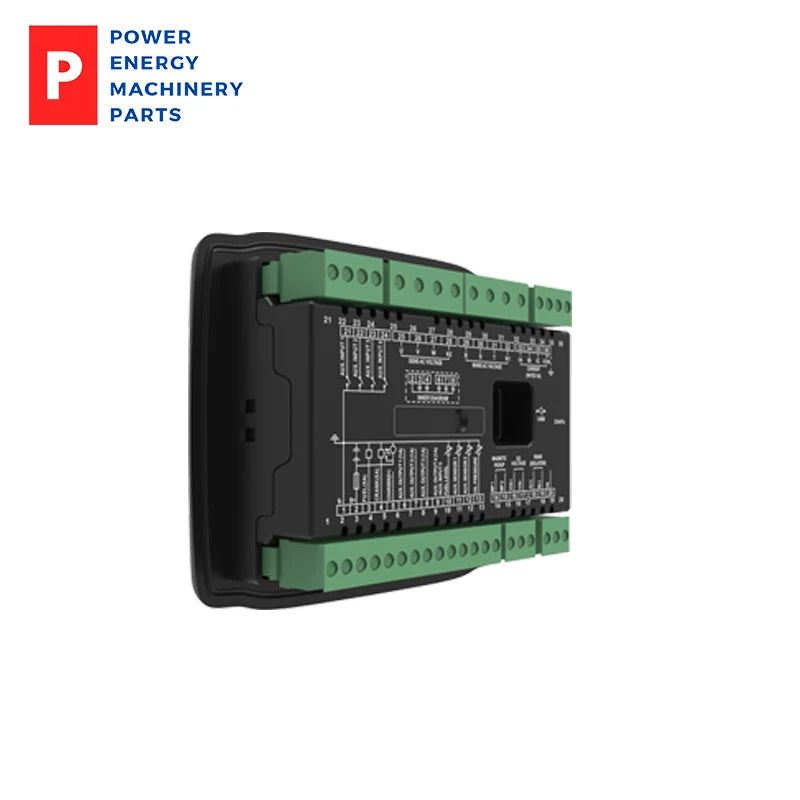

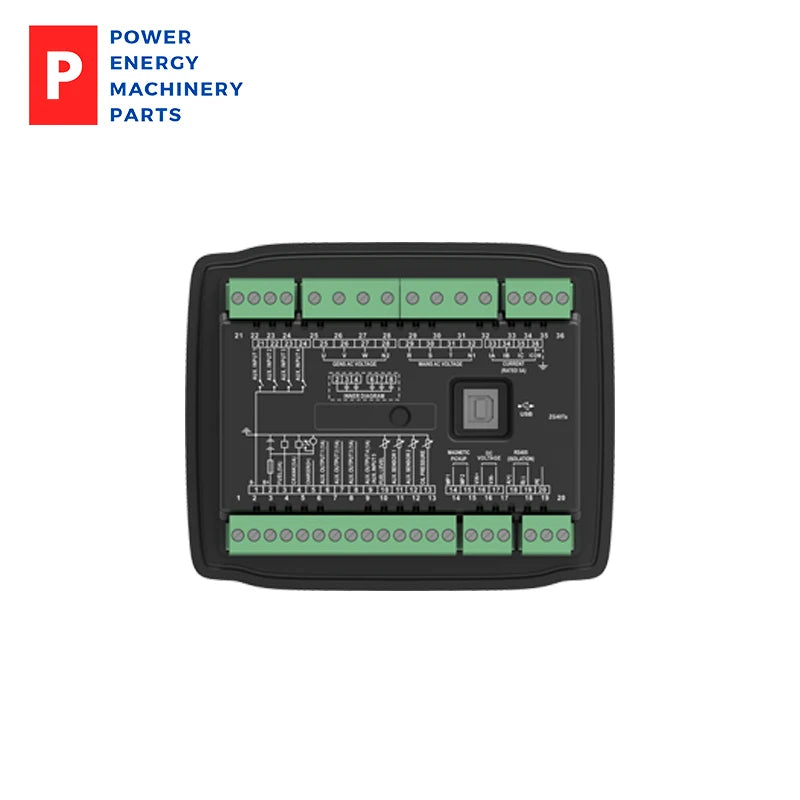

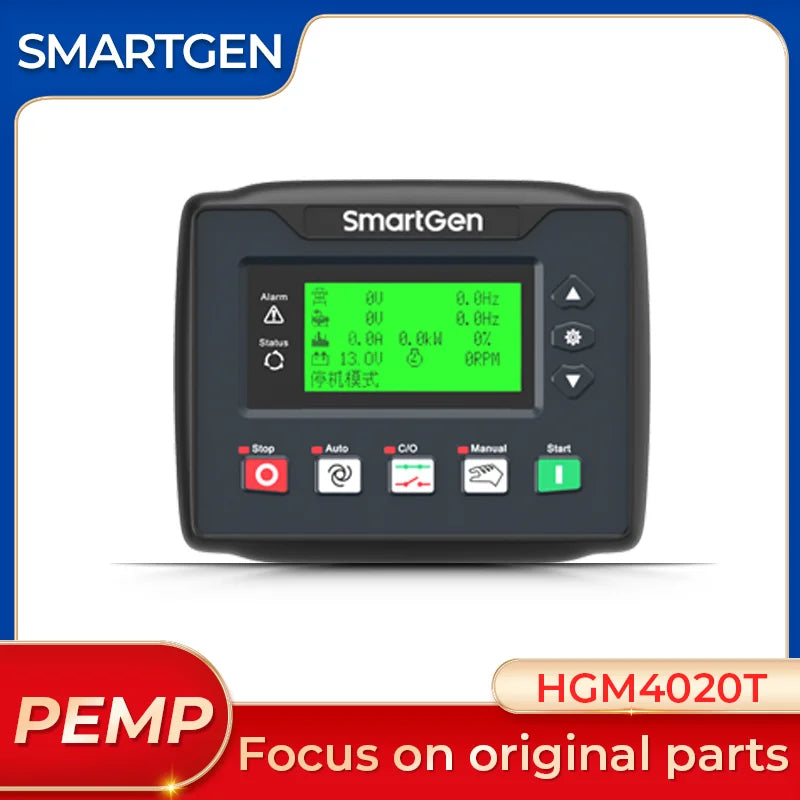

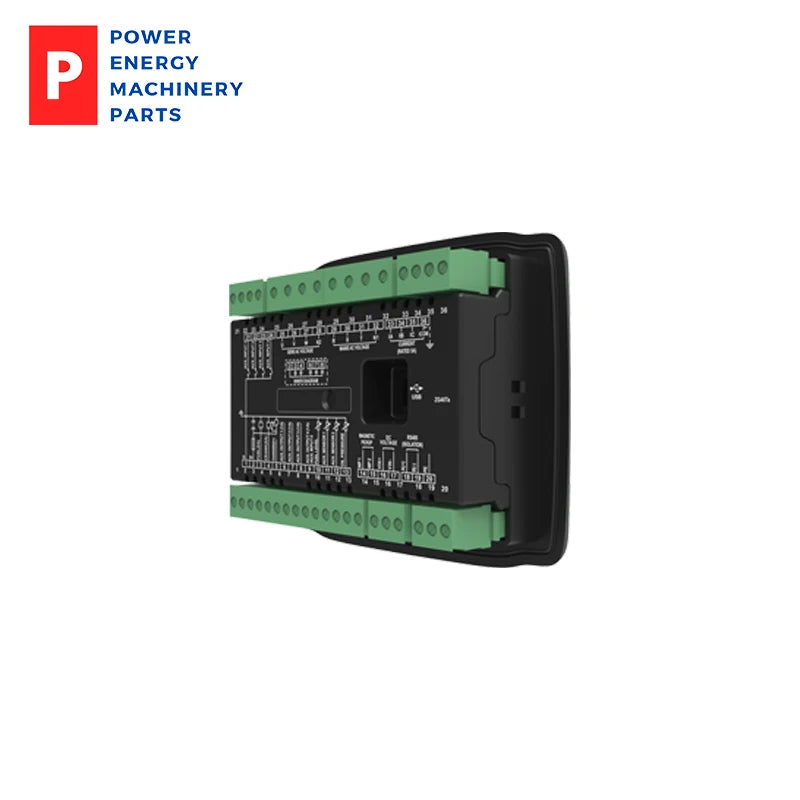

Original Diesel Generator Controller HGM4020T Dual Power ATS RS485 Remote Control Mobile Communication Base Station

HGM4020T

Mobile communication base station + dual power ATS+RS485

Working PowerRange : DC(8-35)V

Overall Dimension : 135*110*44

Installation Dimension : 116*90

Working Temperature : (-25~+70)℃

weight : 0.32kg

HGM4020T genset controller is specially designed for mobile communication base station, and its functions are completely followed by the actual situation of the mobile station. It not only fits with auto start/stop genset function in multiple boot conditions, data measurement function, alarm protection function and etc, but also can monitor machine room temperature and voltage of battery packs to realize dual power ATS function between mains and load or mains and air conditioner.

HGM4020T genset controller adopts micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc functions. All parameters can be configured from front panel or through programmable interface (USB or RS485 interface) via PC. It can be widely used in all types of automatic genset control system with compact structure, advanced circuits, simple connections and high reliability.
