This series of controllers is specially designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline, and gas generator sets and has parameter setting functions.

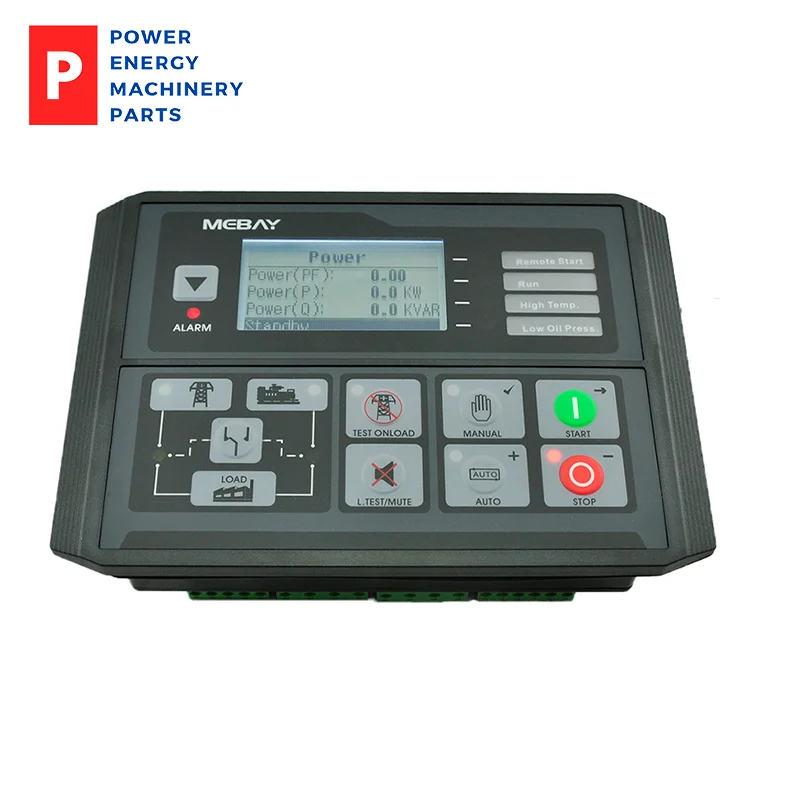

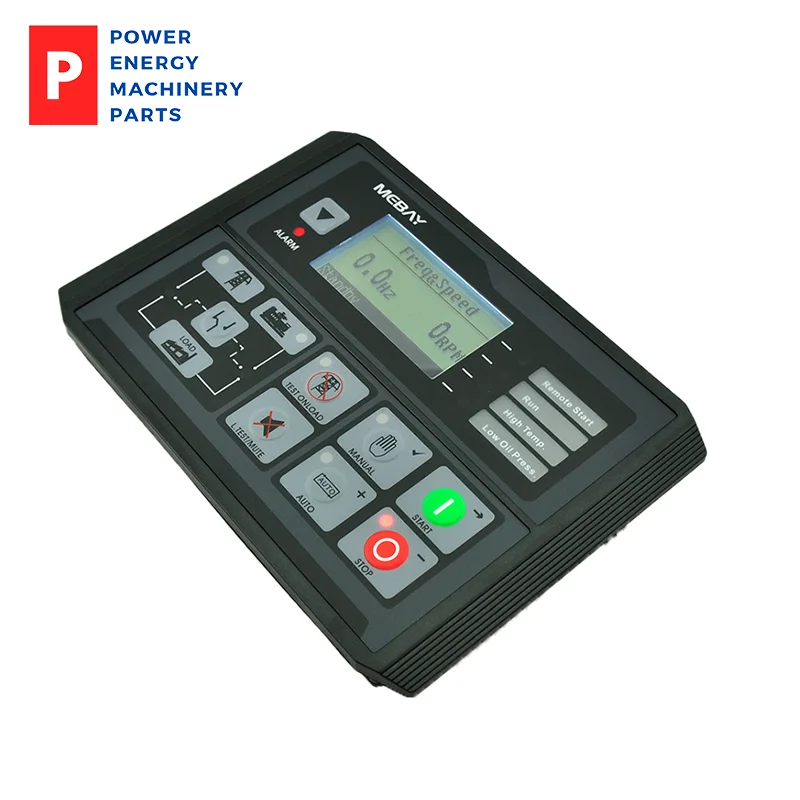

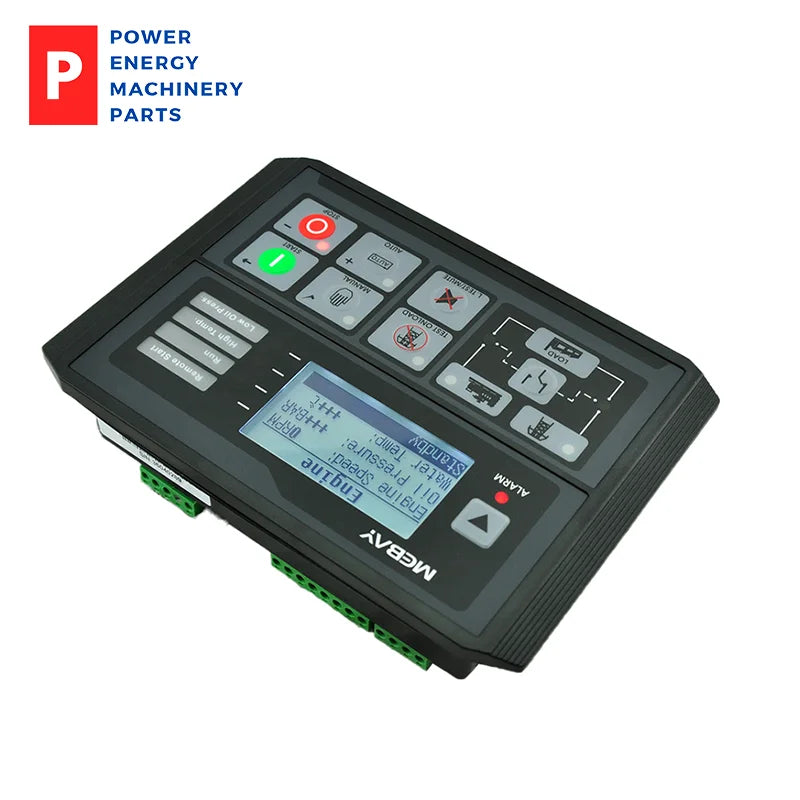

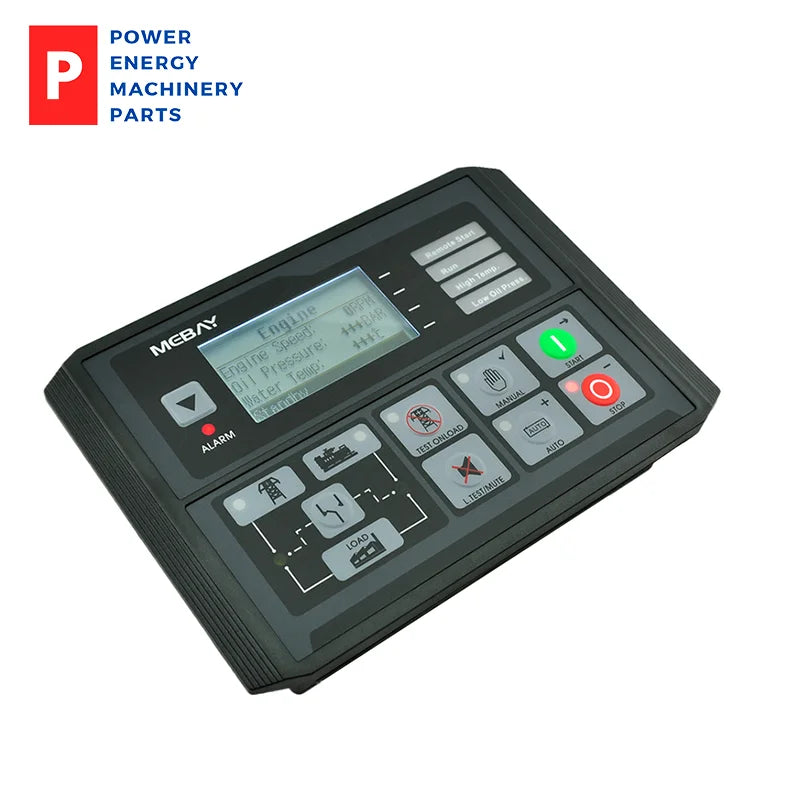

This controller uses a 3.0-inch large-screen dot matrix LCD to display relevant parameters of the generator set. The LCD screen can display multiple current fault states at the same time, and can effectively implement protective shutdown when the generator set is not working properly.

The controller has built-in display interfaces in Simplified Chinese and English, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the buttons on the controller panel or adjusted and monitored using a PC through USB or RS485 interface (equipped with some models). It can be widely used in various types of generator set automation systems.

Performance and features

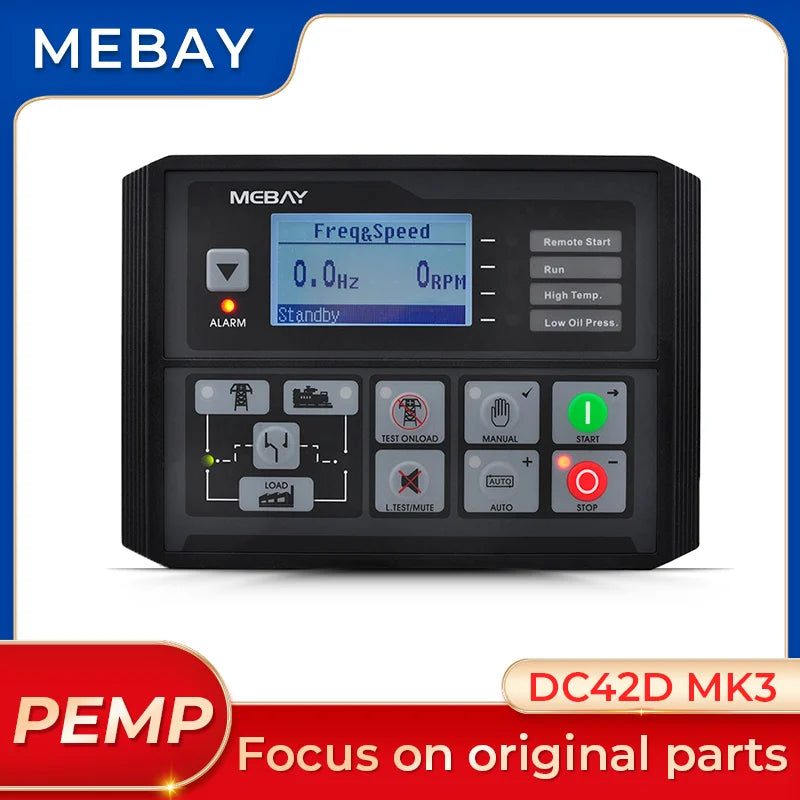

The DC4xD MK3 series is available in five models:

DC40D MK3: used for stand-alone automation, controlling the automatic starting and stopping of the generator set through remote start signals;

DC42D MK3: Based on D40D, it adds mains power monitoring and mains/generation automatic switching control (AMF) functions, and is suitable for stand-alone automation systems consisting of one mains power supply and one generator set.

DC40DR MK3: Adds RS485 interface on the basis of DC40D;

DC42DR MK3: Adds RS485 interface on the basis of DC42D;

DC42DR-ABF MK3: Based on DC42DR, it adds ABF backup battery pack measurement and unit control functions;

Specifications

project

Parameters

Operating Voltage

DC8V to 36V continuous power supply

Machine power consumption

Standby: 24V: MAX 1W

Operation: 24V: MAX 5W

AC voltage input

One phase two wires 50VAC-276VAC (ph-N)

Two-phase three-wire 50VAC-276VAC (ph-N)

Three-phase four-wire 50VAC-276VAC (ph-N)

Engine speed signal range

50-9000Hz

Maximum cumulative running time

99999.9 hours (minimum storage time 6 minutes)

fuel output

5Amp DC+VE supply voltage output

Motor output

5Amp DC+VE supply voltage output

Configurable relay 1

5Amp DC+VE supply voltage output

Configurable relay 2

5Amp passive contact, one normally open and one normally closed output

Configurable relay 3

5Amp passive contact normally open output

Configurable relay 4

5Amp passive contact normally open output

Excitation output

Maximum 1Amp DC+VE supply voltage output

Switch input

Effective when connected to the negative pole of the battery

working conditions

-25-65℃

storage conditions

-40-85℃

Protection level

IP54: When a waterproof ring is installed between the controller and the control panel.

Dimensions

189mm*134mm

Hole Size

160mm*120mm

weight

0.68Kg
