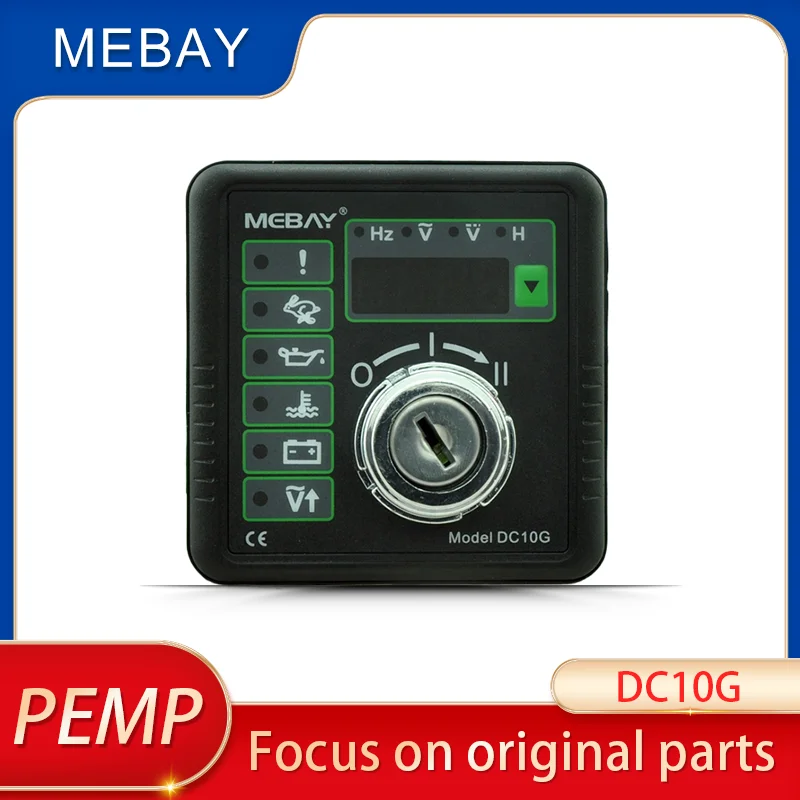

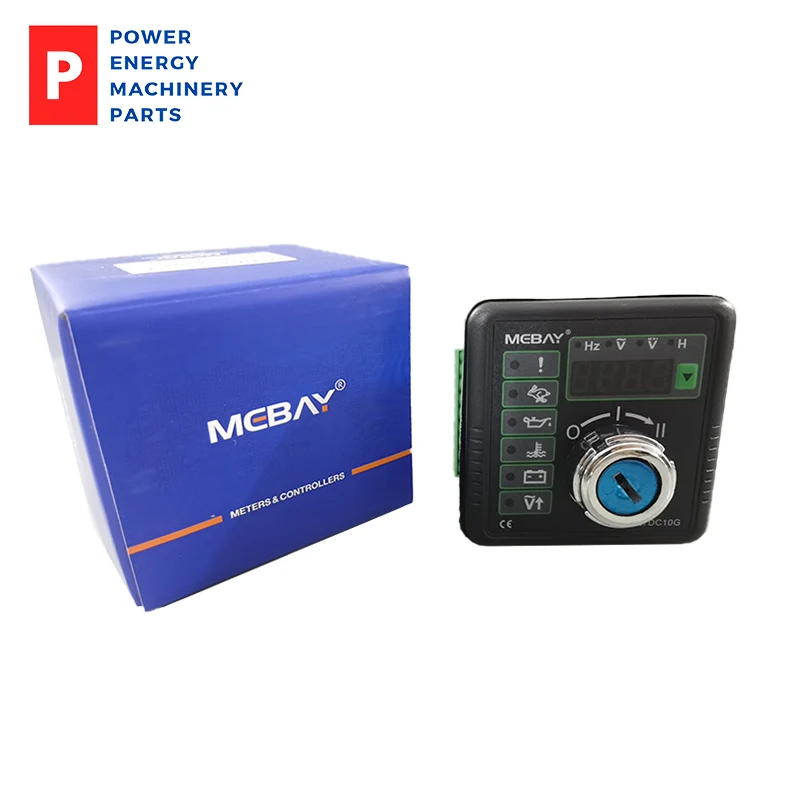

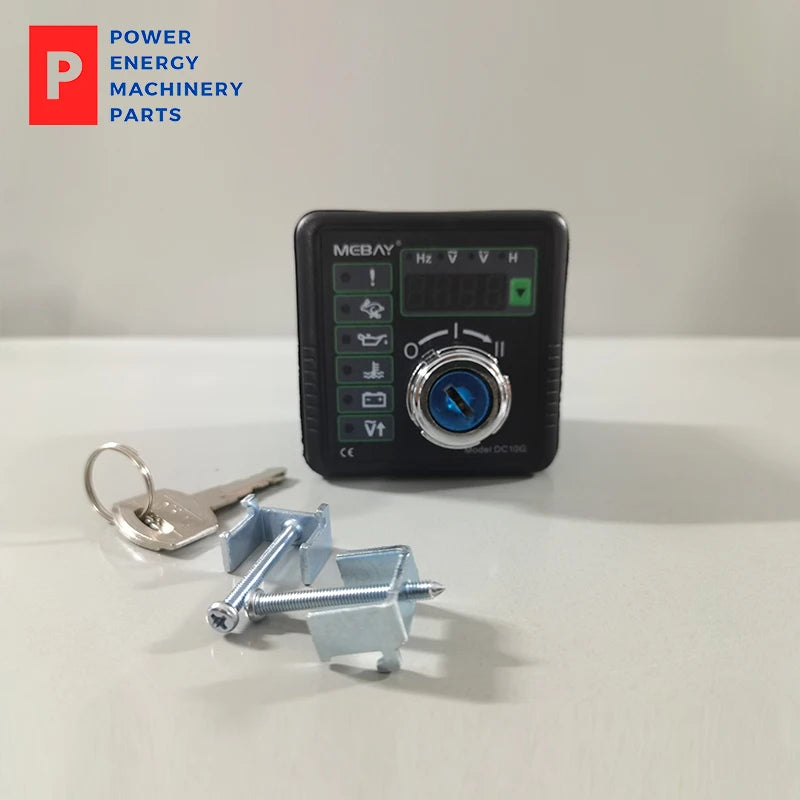

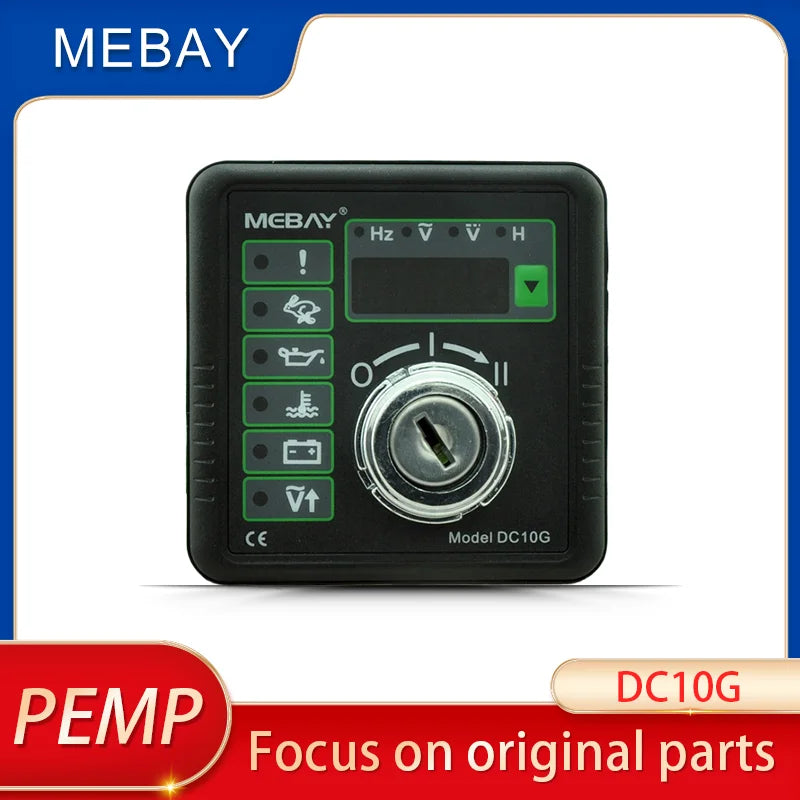

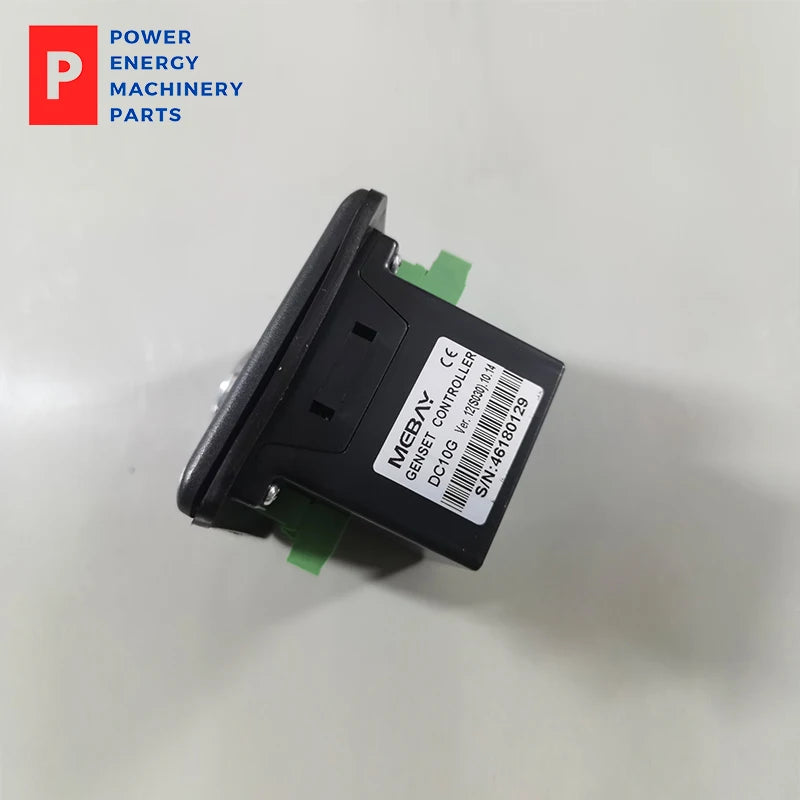

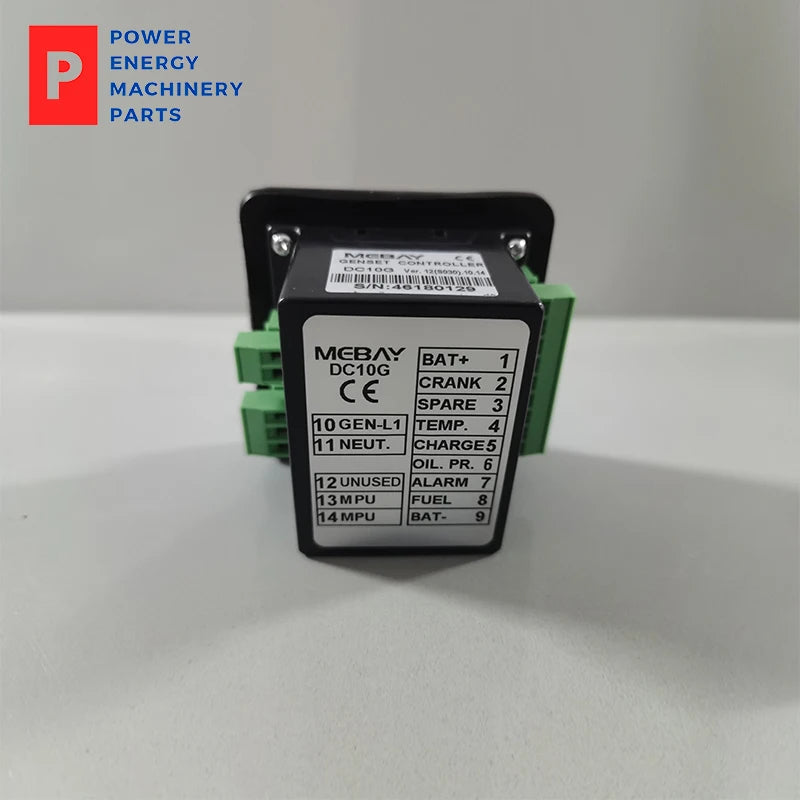

MEBAY DC10G Original Multifunction Generator Set Controller engine manual start and stop controller CE Certification

MEBAY DC10G Original Multifunction Generator Set Controller engine manual start and stop controller CE Certification

DC10K and DC10G are controllers for manual engine start and stop. The 4-digit LED digital tube displays the frequency, voltage, battery voltage, and accumulated working time of the generator set. It has a variety of parking protection and alarm indication functions, and can conveniently monitor the working status of the generator set.

The controller can be connected to the computer through a data cable, and the controller parameters can be set through the software to facilitate matching of generator sets with more specifications.

Specifications

project

Parameters

Operating Voltage

DC8V to 33V continuous power supply

Machine power consumption

Standby: 24V: MAX 1W

Operation: 24V: MAX 2W

AC voltage input

One phase two wires 15VAC-300VAC 50/60Hz

Engine speed signal range

300-10000Hz

Maximum cumulative running time

9999 hours (minimum storage time 6 minutes)

fuel output

Max 16Amp DC+VE supply voltage output

Motor output

Max 10Amp DC+VE supply voltage output

Alarm Output

Max 16Amp DC+VE supply voltage output

Excitation output

Maximum 80mA DC+VE supply voltage output

Switch input

Effective when connected to the negative pole of the battery

Insulation level

When AC2.2kV voltage is applied between the AC high-voltage terminal and the low-voltage terminal, the leakage current shall not exceed 3mA within 1 minute.

working conditions

-30-75℃

storage conditions

-40-85℃

Dimensions

78mm×78mm×72mm

Hole Size

67mm×67mm

weight

0.28Kg
