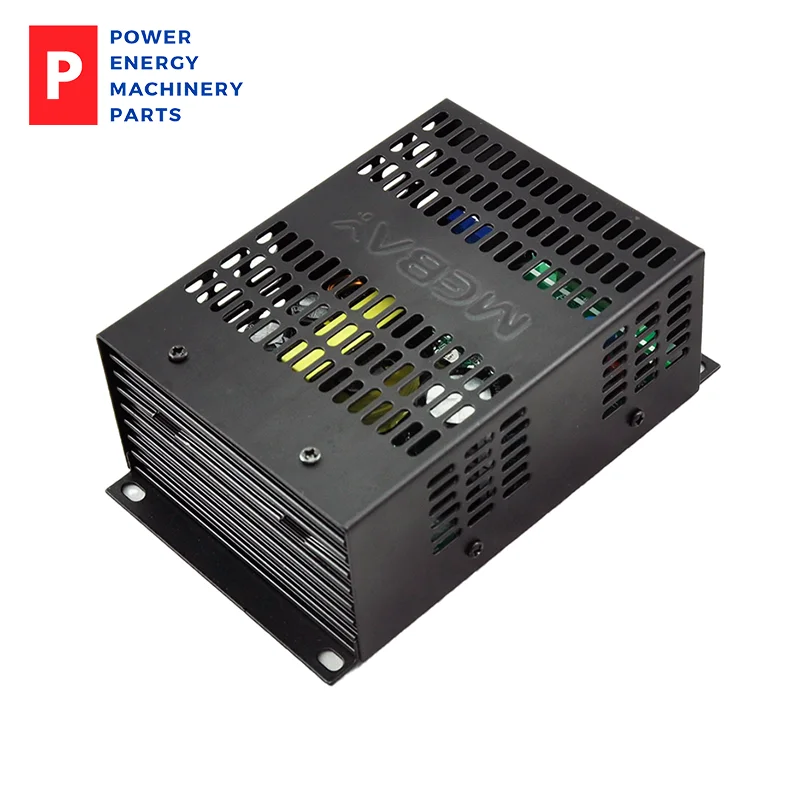

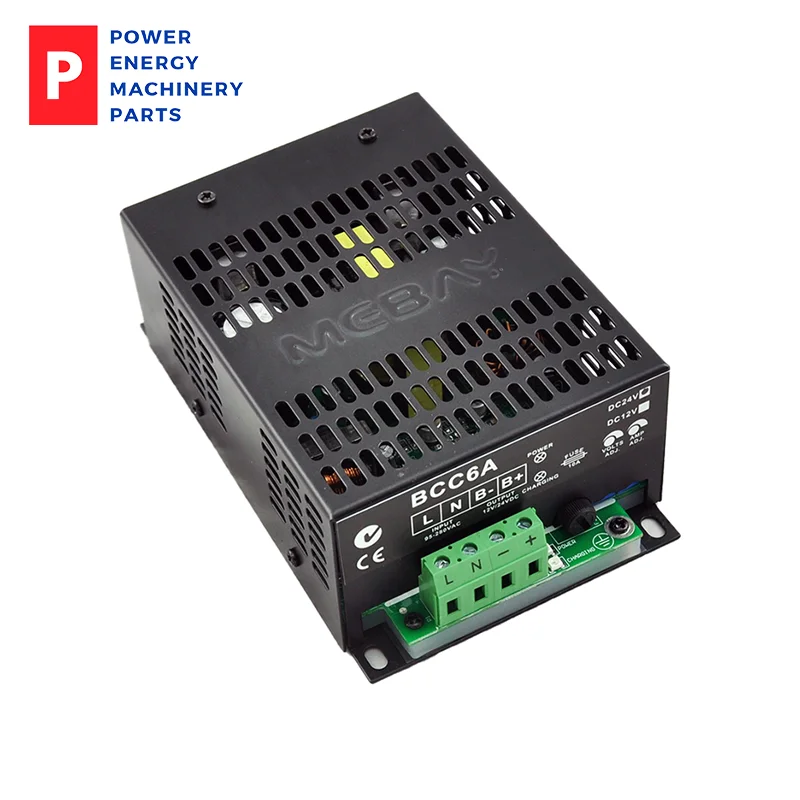

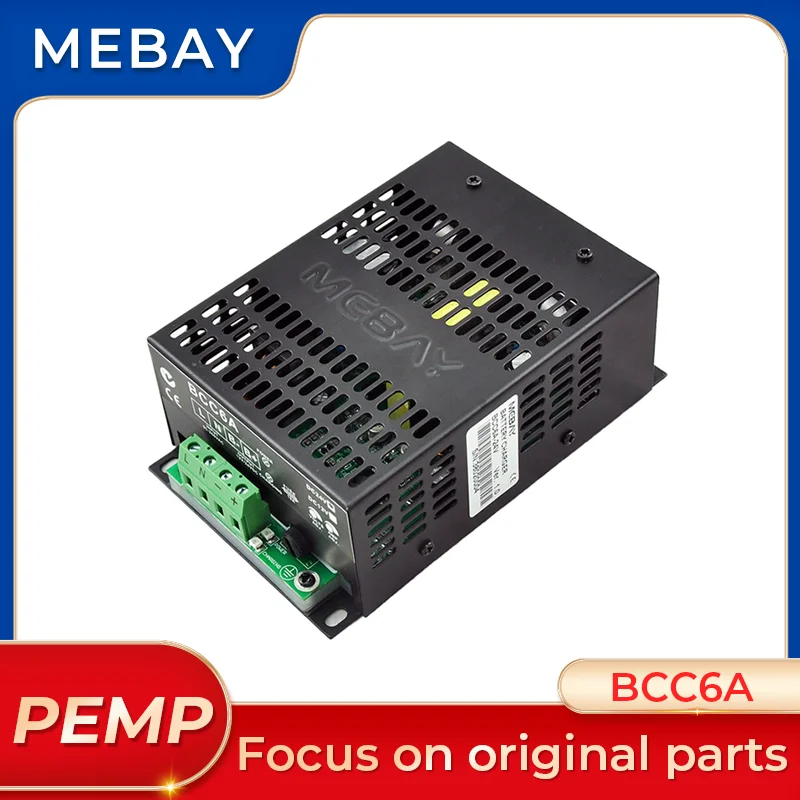

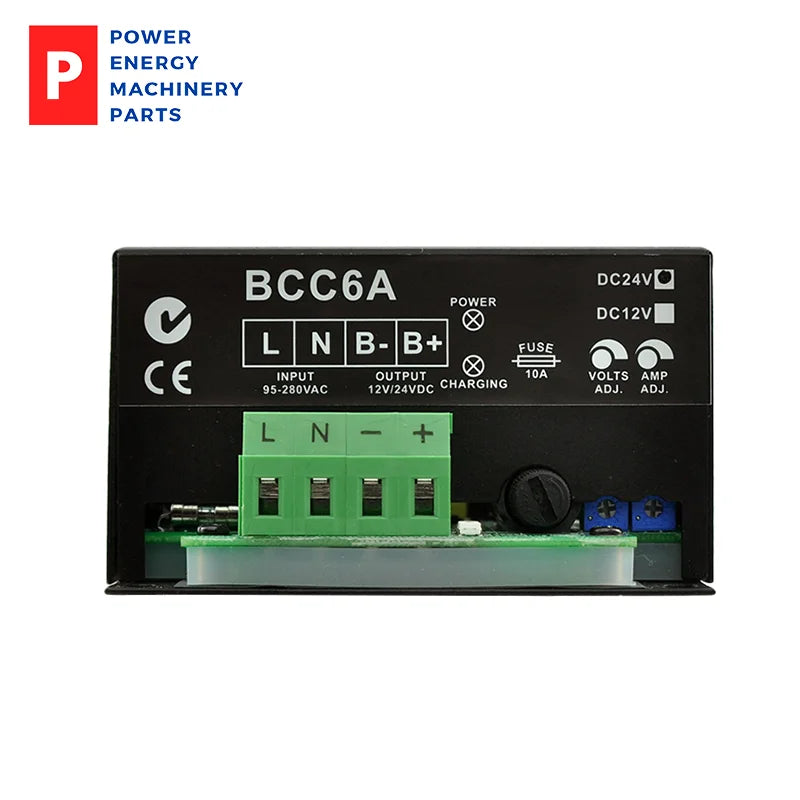

Mebay BCC6A 12V 24V Genuine Intelligent Battery Chargers Circuit Design Adapter

Mebay BCC6A12V 24V Genuine Intelligent Battery Chargers Circuit Design Adapter

This charger is specially designed for lead-acid batteries used in engines. It adopts a three-stage intelligent control method of constant current fast charging, current limiting, and trickle and float charging. It can be charged for a long time without causing damage to the battery, and it can maintain the full charge state of the battery and ensure the service life of the battery. This charger can be used in parallel with the engine charging generator, and there is no need to disconnect the charger while the engine is running.

Parameter specifications

category

project

12V

24V

Input parameters

Nominal input voltage

AC95V to 280V continuous power supply

Maximum input voltage

AC90V to 305V continuous power supply

Enter AC frequency

50Hz/60Hz

Maximum input current

2A

efficiency

>82%

Output parameters

Output current range

4-6A, error ±2%

2-3A, error ±2%

Factory charging current

6A

3A

Maximum output power

85W

Minimum output voltage

7.5V

No-load output voltage

13.8V, error ±1%

27.6V, error ±1%

Insulating properties

Insulation resistance

Input and output, input and shell are all DC500V 1min, and the insulation resistance RL ≥ 50MΩ.

Insulation voltage

Input and output, input and housing are both AC1500V 50Hz 1min, leakage current IL≤3.5mA.

working environment

Operating temperature

-30～55°C

Storage temperature

-40～85°C

Working humidity

10%RH～95%RH (no condensation)

Shape parameters

Dimensions

143mm×96mm×55mm (length×width×height)

Installation hole distance

132mm×75mm(length×width)

weight

0.7Kg
