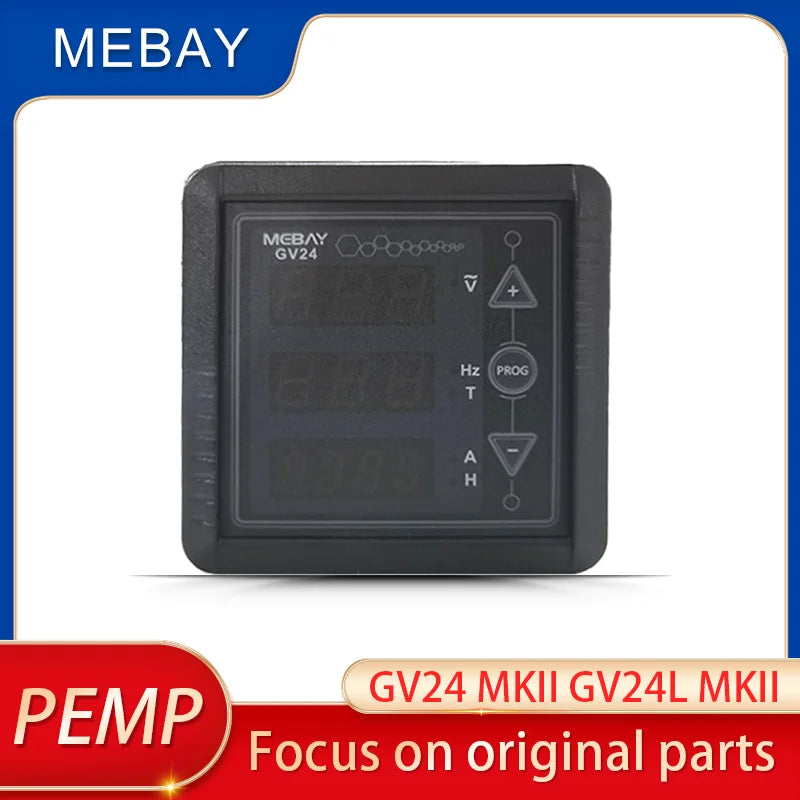

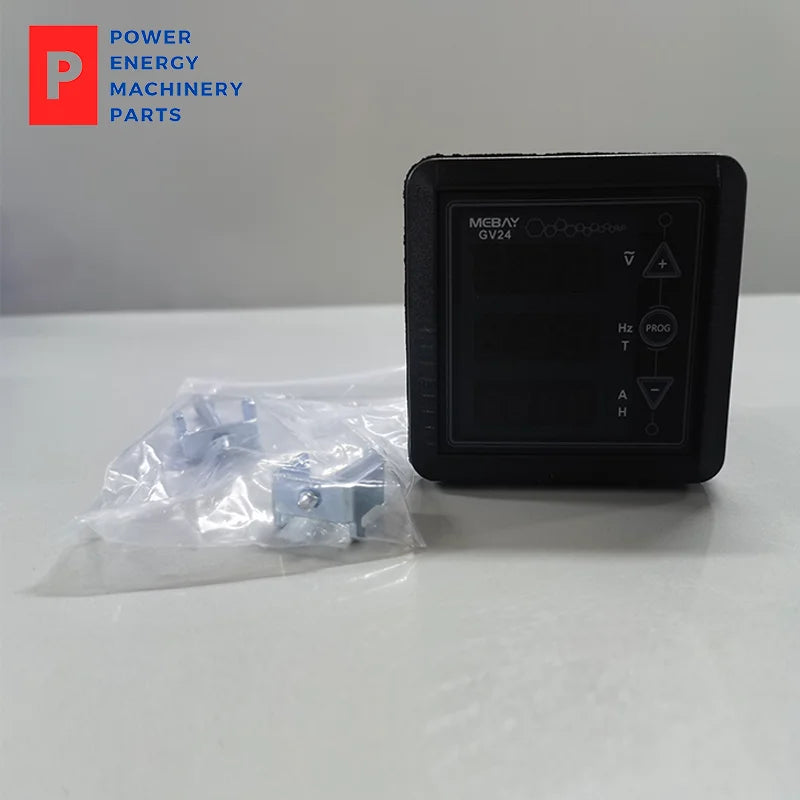

GV24 MKII GV24L MKII MEBAYG AC Voltage Original Diesel Generator Digital LED Display

GV24 MKII is an upgraded product of our company's GV24 digital display meter. It is a lightweight and low-cost module used to measure and display AC voltage, frequency, current, current operating time, and accumulated operating time. It can replace the traditional pointer type Instrument, realizing one meter for multiple purposes.

  This series of instruments has two models:

    GV24 MKII: equipped with a current transformer with a secondary of 5A;

    GV24L MKII: equipped with a current transformer with a secondary of 50mA.

Features

  After installation, the panel reaches IP55 protection level;

  Able to measure and display voltage, frequency, and current simultaneously;

  3-digit high-brightness LED digital tube displays the measured value;

  The current transformer ratio can be set;

Specifications

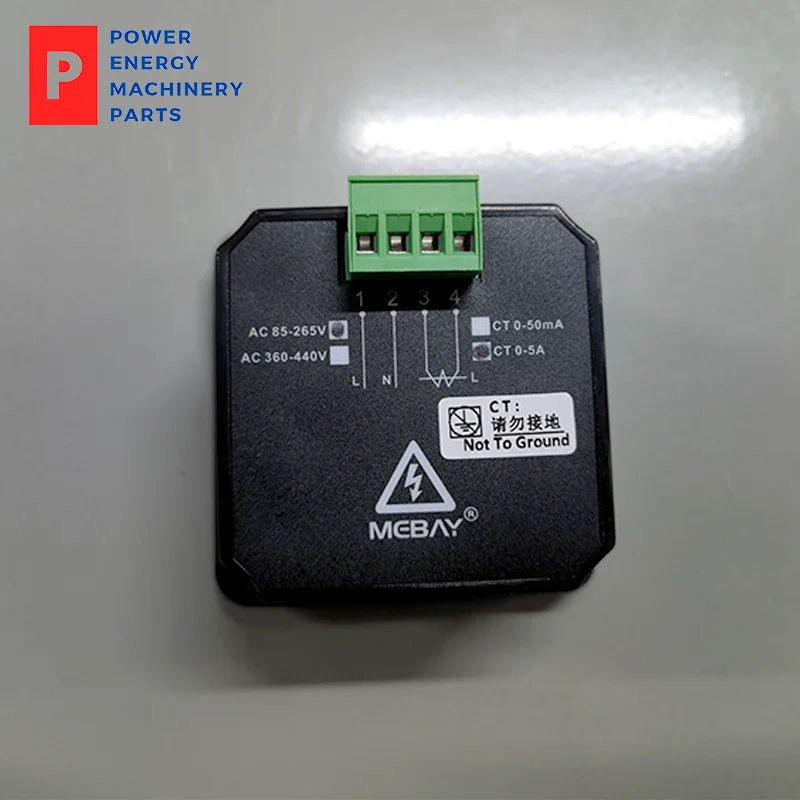

  Working power supply:

    110V, 220V system: AC85～265V, 50/60Hz;

    380V system: AC360~440V, 50Hz.

  Power consumption: MAX 1W

  Operating temperature range: -20℃～65℃

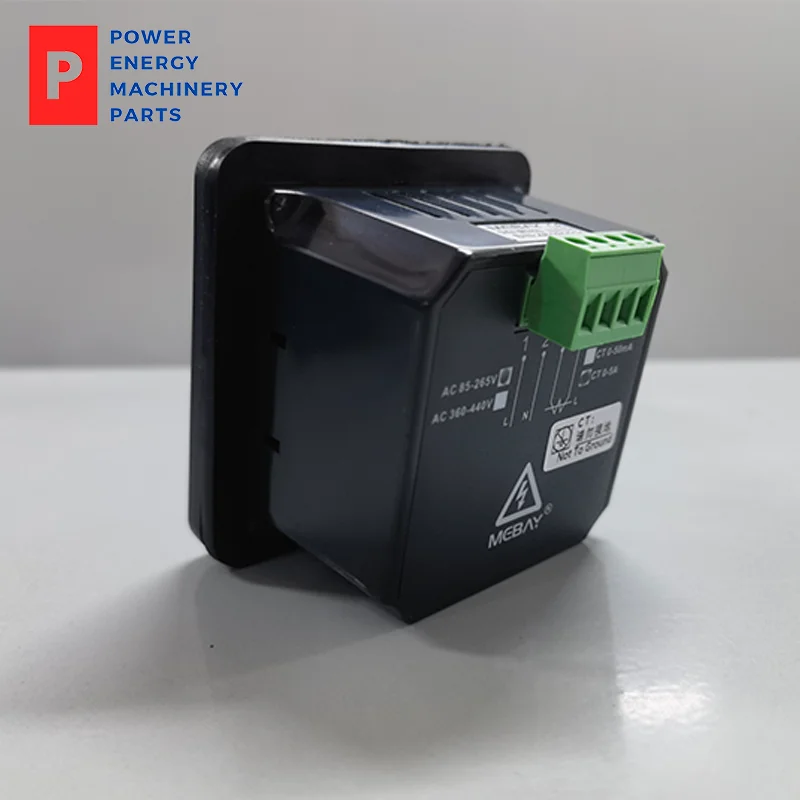

  Volume size (W * H * D): 78mm*78mm*63mm

  Installation opening (W * H): 67mm*67mm

  Protection level: IP54 (front panel after installation)

  Weight: 200g
