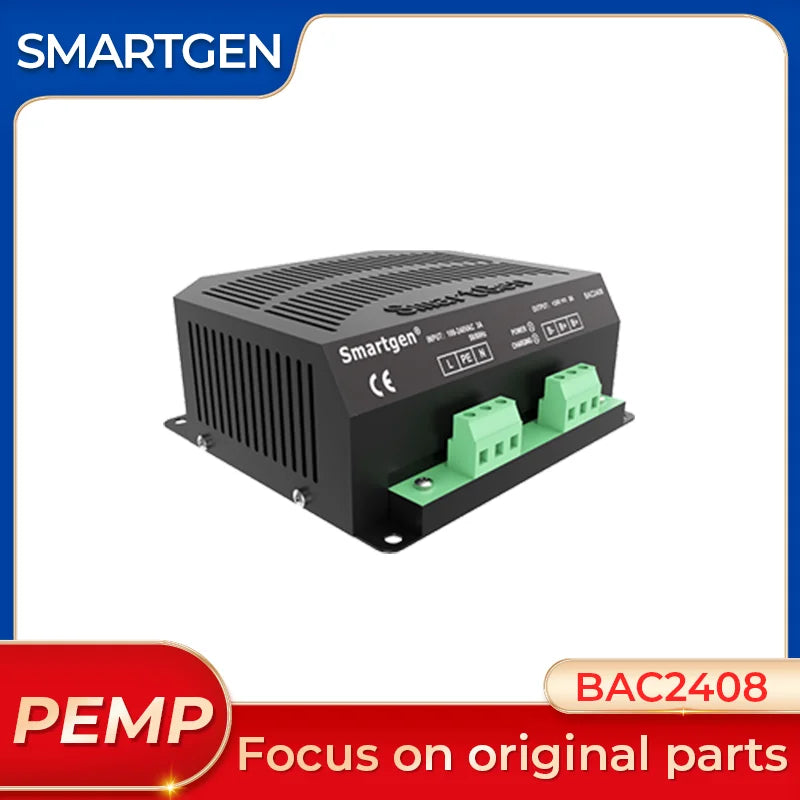

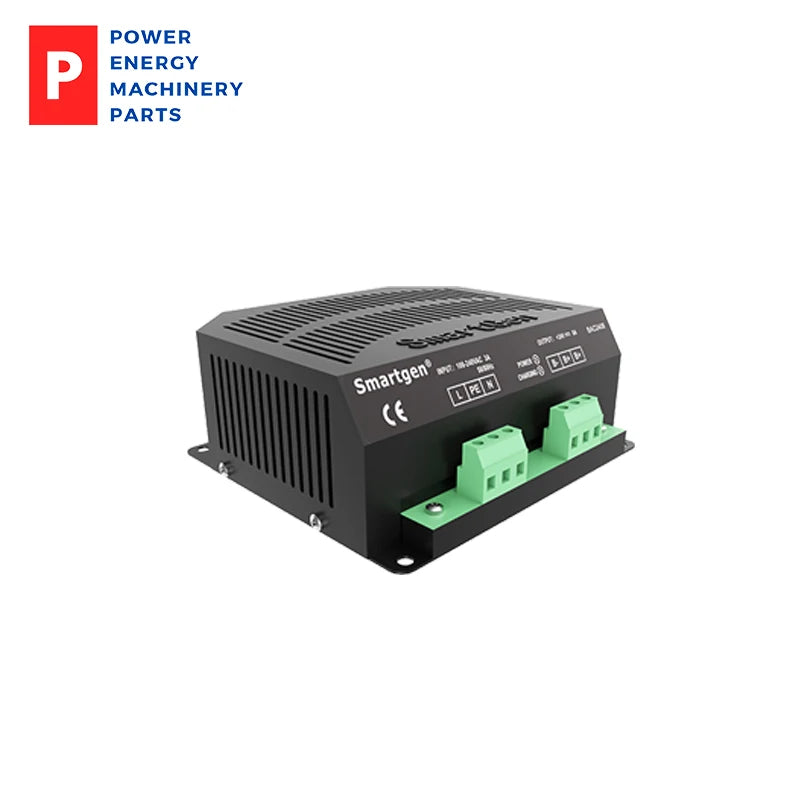

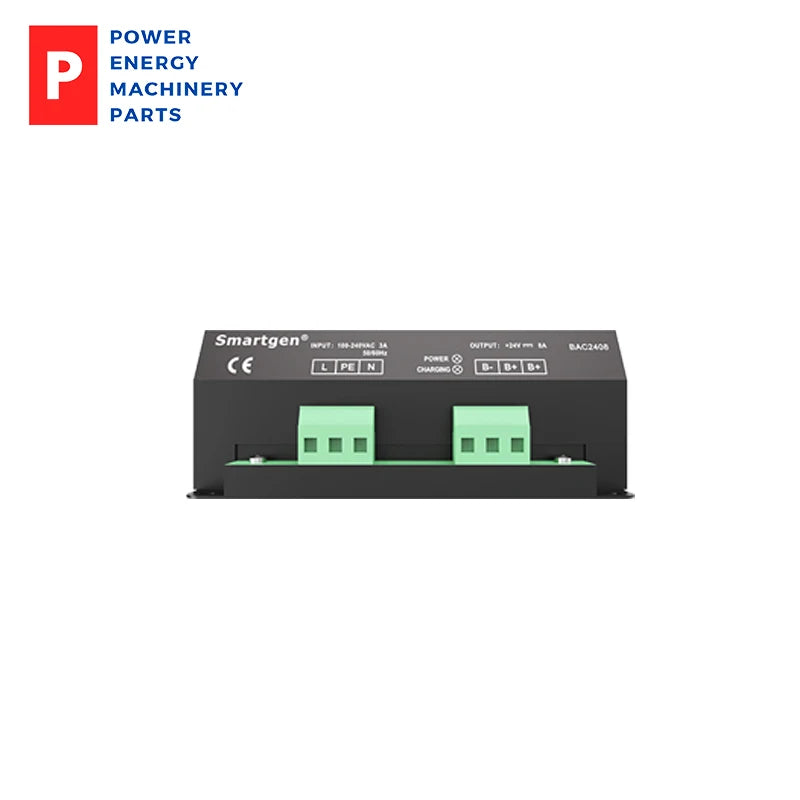

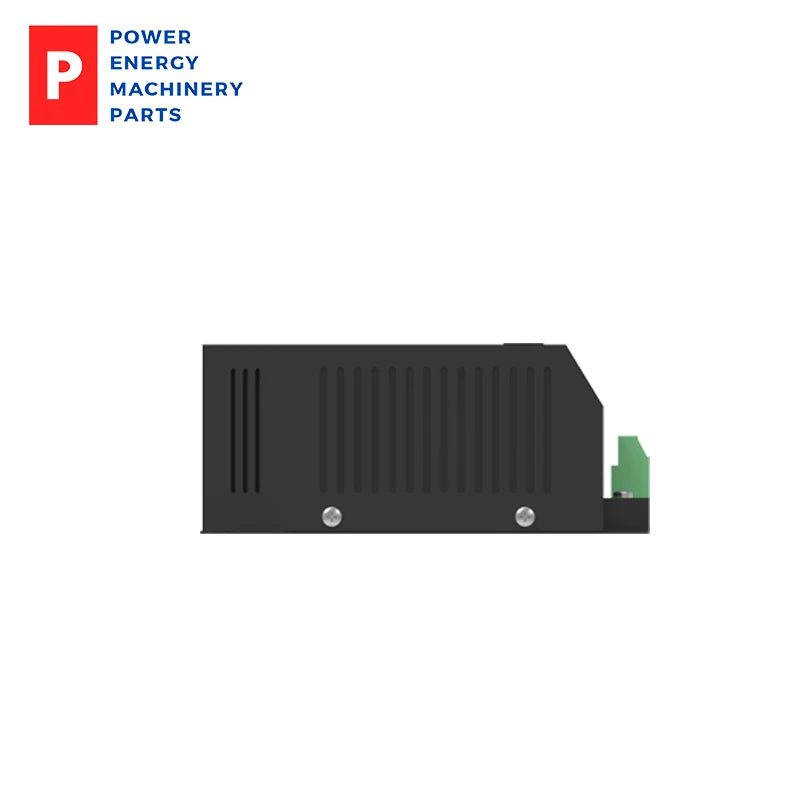

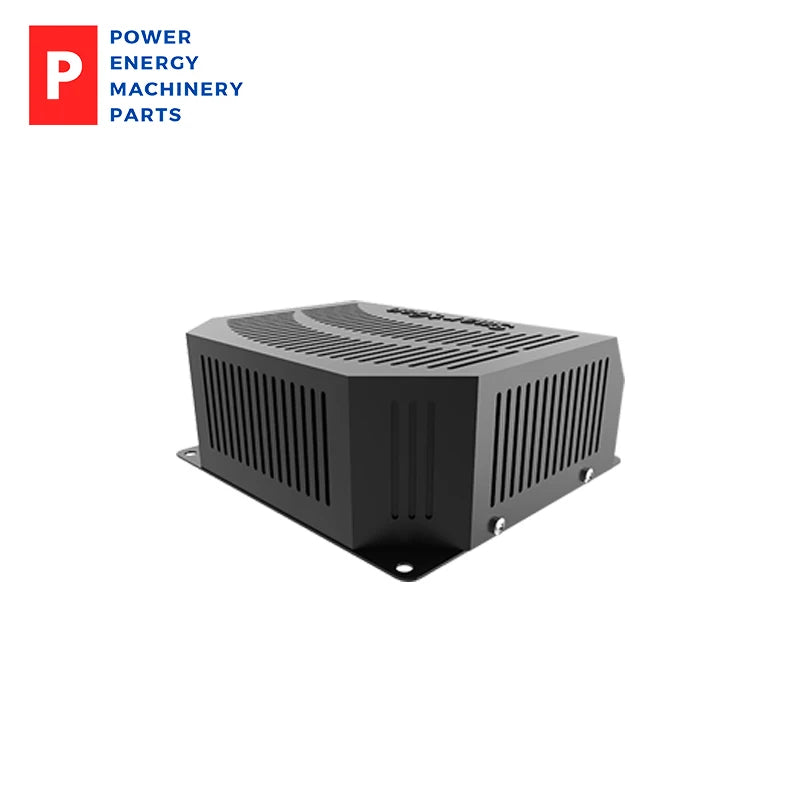

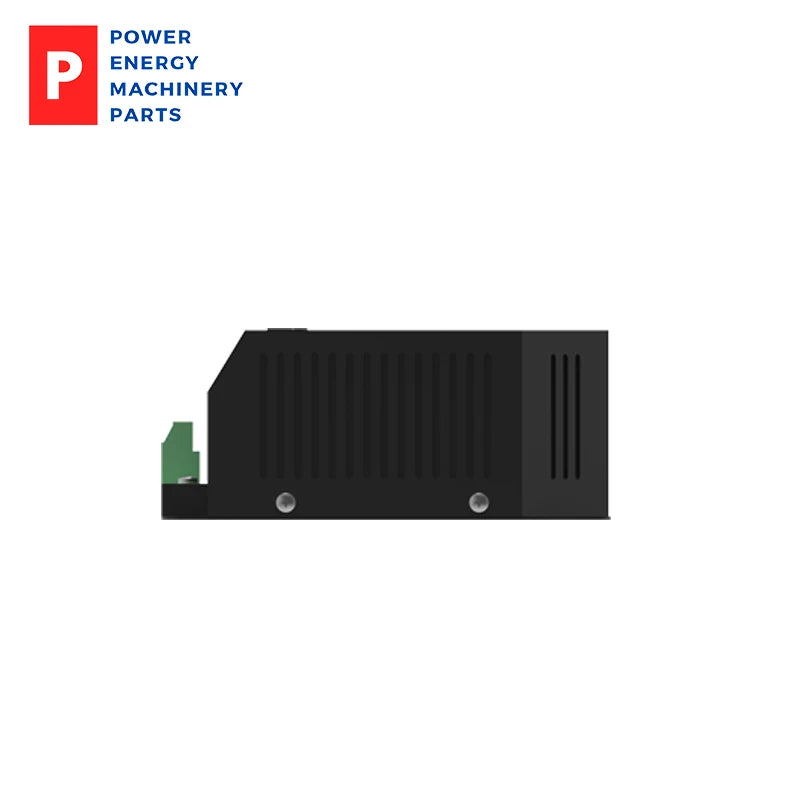

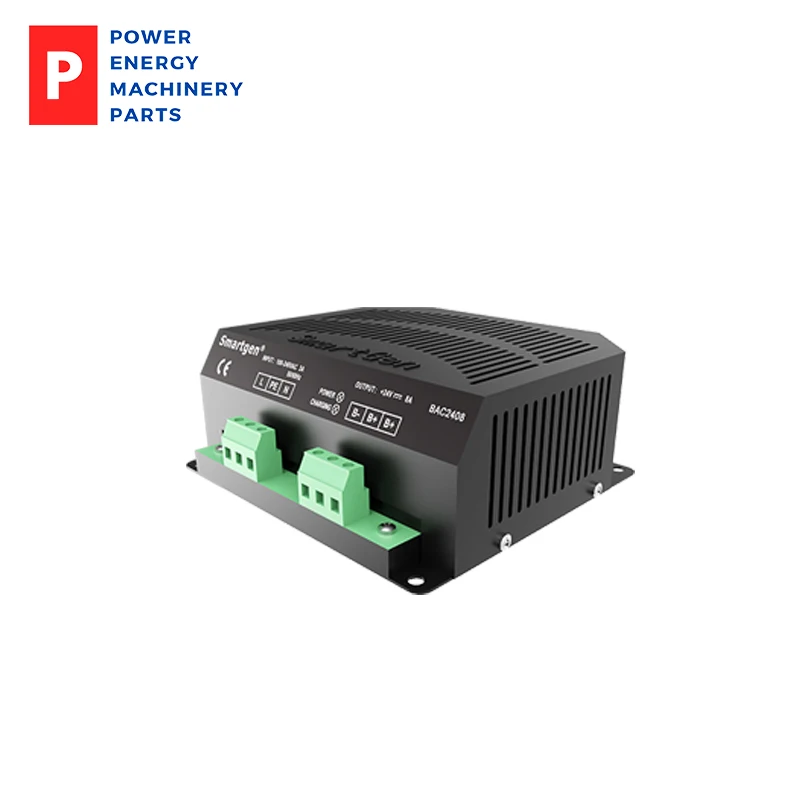

Genuine SmartGen BAC2408 24V 8A Battery Charger Control Module battery intelligent

Fit with up-to-date power supply device, float charger BAC2408 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 24V lead-acid batteries.

PERFORMANCE AND CHARACTERISTICS

1. Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;

2. Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;

3. Built-in PFC circuit can calibrate the power factor above 0.99;

4. Built-in current protective circuit for short-circuit protection and reverse connection protection. If failure occurs, power indicator and charging indicator will flash rapidly;

5. Suitable for 24V storage battery and the rated current is 8A;

6. LED display: Power indication (Green light) and charging indication (Red light).
