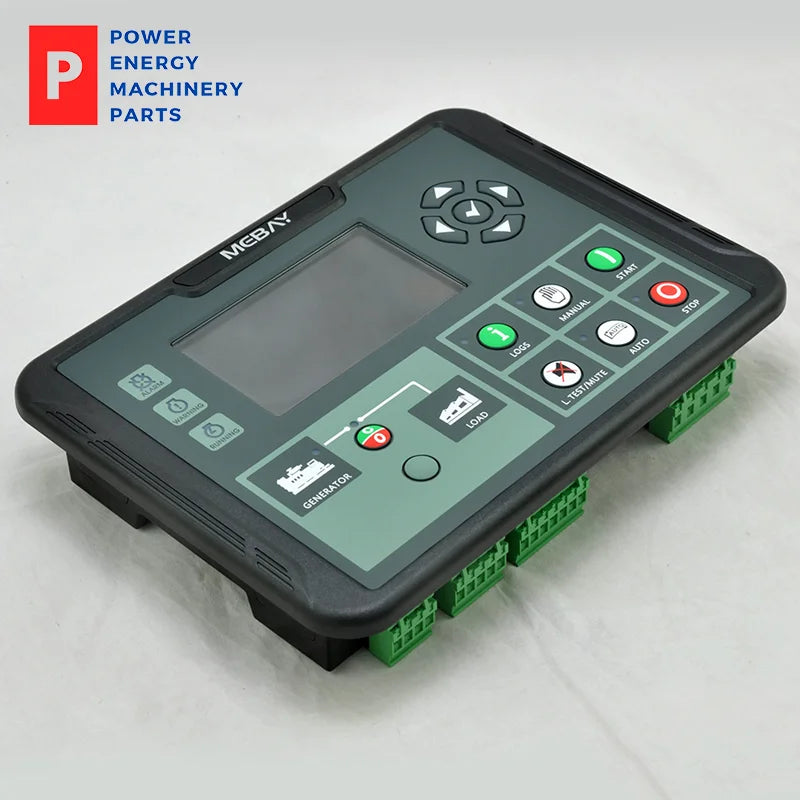

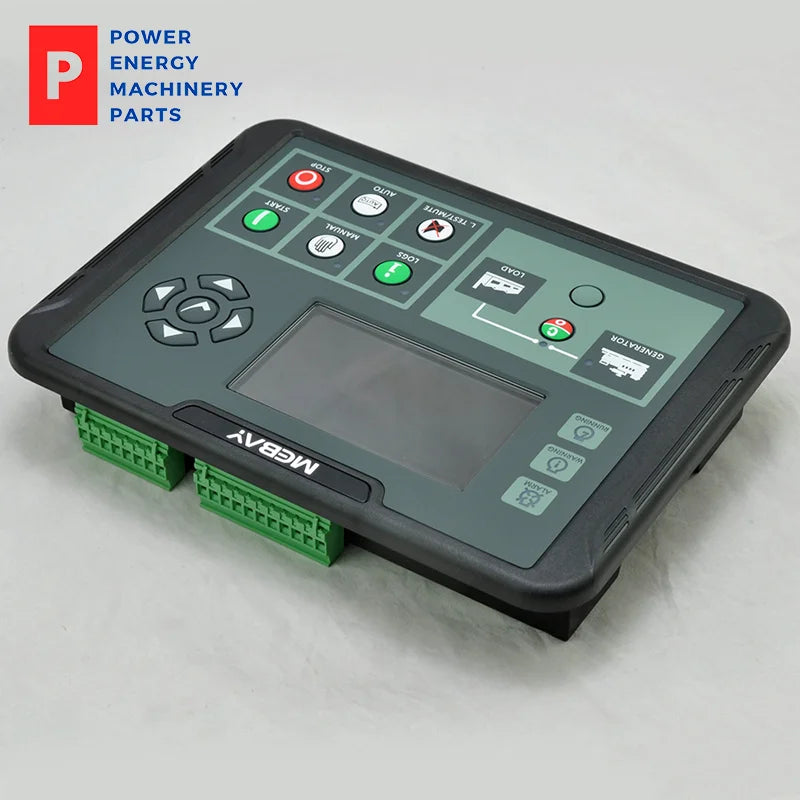

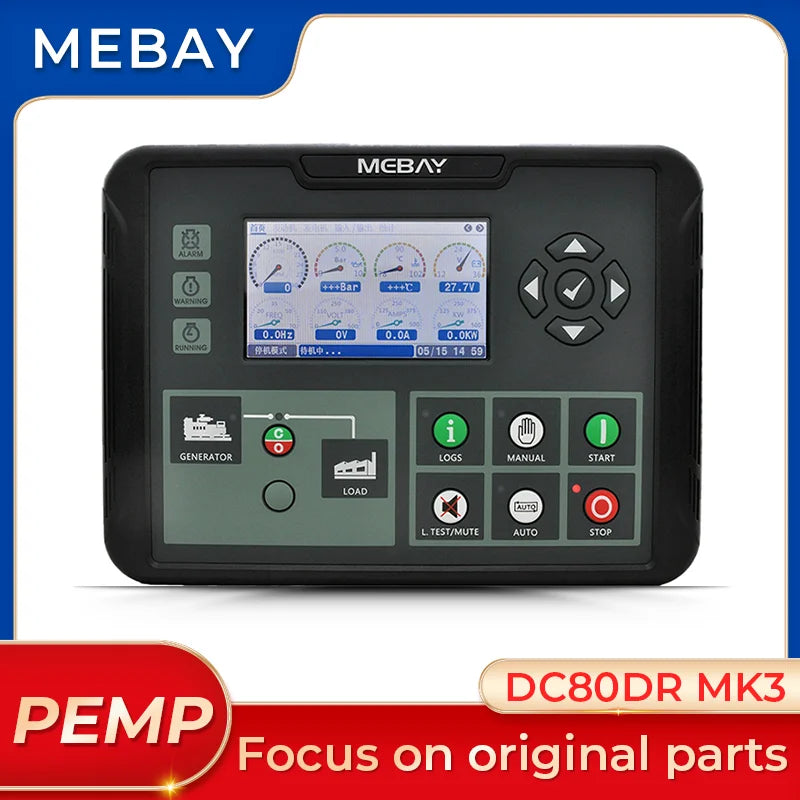

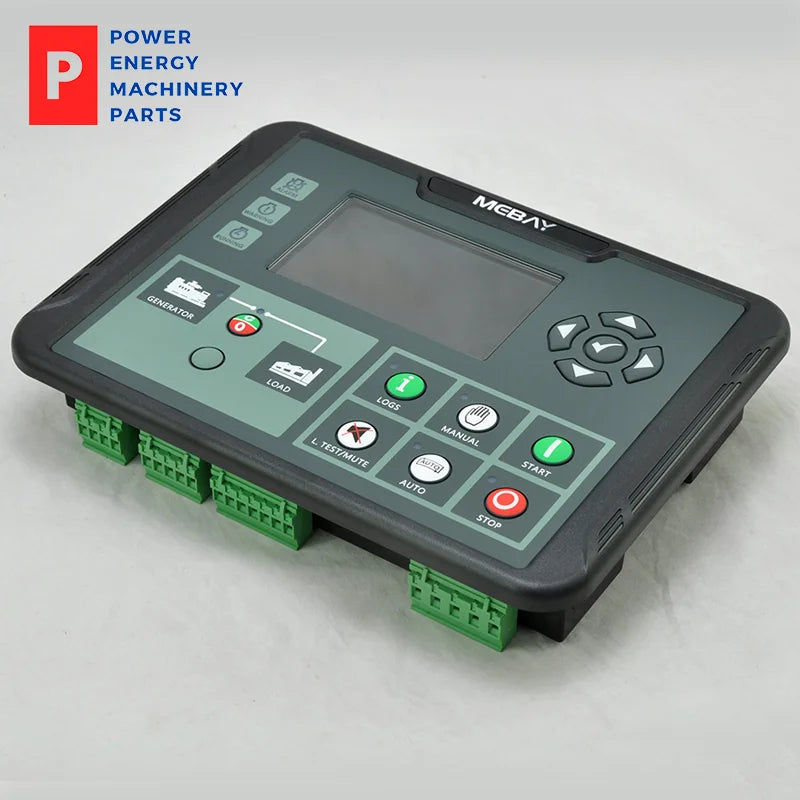

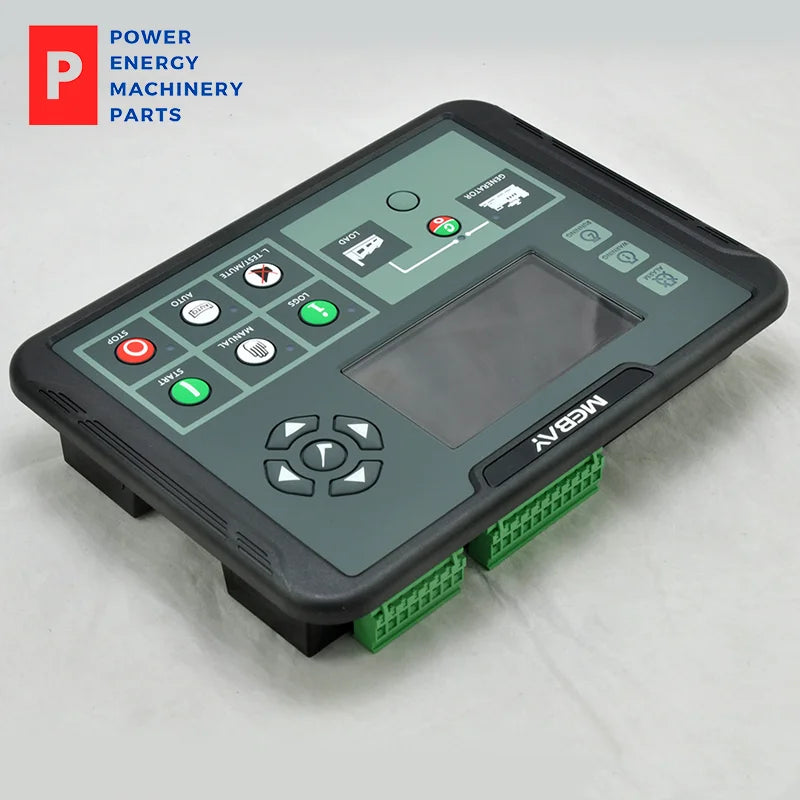

Genuine Mebay DC80DR MK3 DC82DR MK3 Diesel Generator Controller Module LCD Display RS485 PC Monitoring Control Board
Mebay DC80DR MK3 generator set controller supports RS485 universal serial bus
Generator controller DC80DR MK2 is specially used for starting, stopping, parameter monitoring, fault checking and data setting of diesel/gasoline/gas generator sets. It has an RS485 port for remote control of the generator set.
Personalized setting
☑ Brand new UI design is adapted
☑ Customers' Own logo can be set at the starting page
☑ Different language for your options (English, Spainsh, Turkish, Russian, Chinese)
Main Features:
☑4.3" LCD Colorful Screen
☑3 class maitenance countdown
☑Black Box function
☑Totally 7 relay’s output, among which 5 relay output can be self-configurable, each relay can be set as max 50 functions, besides, there are 2 groups as non-contact terminals.☑5 relays can be set as switch value input, and function configurable.☑3 sensor simulation input connectors, various kinds of units can be set.
☑Adapt to 3P4W, 1P2W, 2P3W (120V/240V, 50/60HZ)
☑Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.
☑Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
Specifications
project
Parameters
Operating Voltage
DC8V to 36V continuous power supply
Machine power consumption
Standby: 24V: MAX 1W
Operation: 24V: MAX 5W
AC voltage input
One phase two wires 20VAC-276VAC (ph-N)
Two-phase three-wire 20VAC-276VAC (ph-N)
Three-phase four-wire 20VAC-276VAC (ph-N)
Engine speed signal range
150-9000Hz
Maximum cumulative running time
99999.9 hours (minimum storage time 6 minutes)
fuel output
5Amp DC+VE supply voltage output
Motor output
5Amp DC+VE supply voltage output
Configurable relay 1
5Amp DC+VE supply voltage output
Configurable relay 2
5Amp DC+VE supply voltage output
Configurable relay 3
5Amp DC+VE supply voltage output
Excitation control
0.5Amp DC+VE supply voltage output
Switch input
Effective when connected to the negative pole of the battery
working conditions
-20-65℃
storage conditions
-40-85℃
Protection level
IP54: When a waterproof ring is installed between the controller and the control panel.
Dimensions
240mm*172mm
Hole Size
220mm*160mm
weight
1Kg
