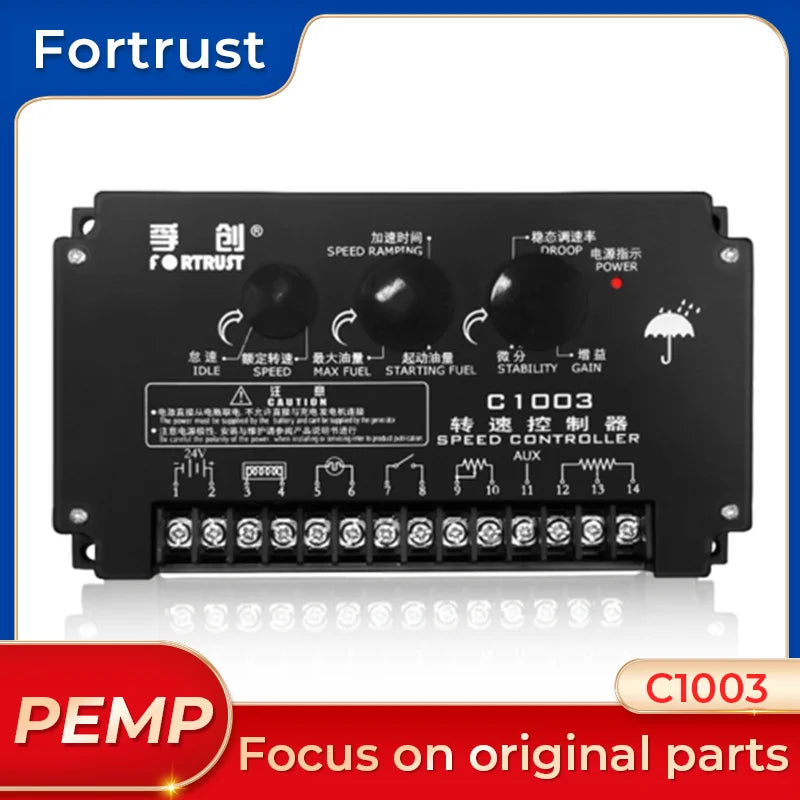

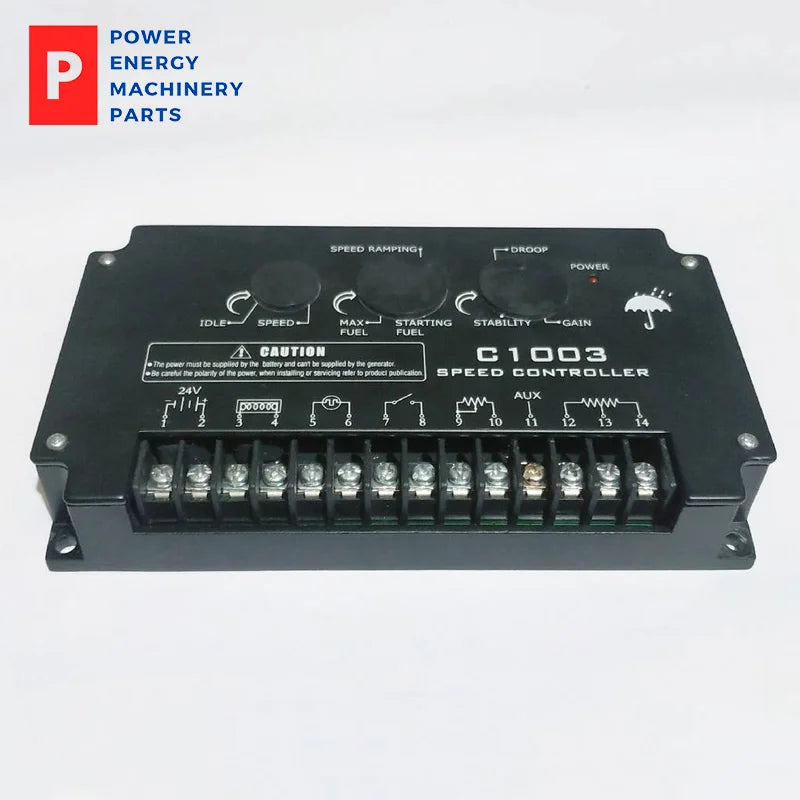

Genuine Engine C1003 Governor Speed Controller Generator Parts Control Board

Genuine Engine C1003 Governor Speed Controller Generator Parts Control Board

2.1 C1003 type speed controller (speed controller)

2.1.1Basic electrical characteristics

Power supply voltage: DC 24V (range 18V~32V)

Power consumption: <0.1A (excluding actuator)

Control frequency: 1000~13000Hz

Speed fluctuation rate: ≤±0.25%

Steady state regulation rate: 0~5% adjustable

Transient speed regulation: ≤10%

Ambient temperature: -40 degrees Celsius to +80 degrees Celsius

Ambient humidity: <95%

Protection level: IP44

2.1.2 Basic functions of C1003 speed controller

Power indicator light: Indicates whether the speed controller is powered normally;

Adjustable starting oil amount: adjust the smoke exhaust condition when starting the engine;

Maximum oil quantity limit: Limit the maximum fuel injection quantity of the oil pump to prevent overuse of the engine;

Speed control and speed fine-tuning: Double closed-loop method is used to control the speed, and the speed can be accurately adjusted and remotely controlled;

Adjustable speed-up time: The speed-up time of the engine from idle to rated operating conditions can be adjusted;

High and low speed conversion: can switch between idle speed and rated working conditions;

Steady-state regulation rate (rapid drop) is adjustable: Steady-state regulation rate range is adjustable;

Parallel function: Multiple units can be operated in parallel through manual or automatic parallel function;

Full speed regulation: Continuous and smooth adjustment between speeds within a certain range can be achieved;

Automatic parking protection: When the speed signal disappears and the controller loses power, the engine will automatically stop;
