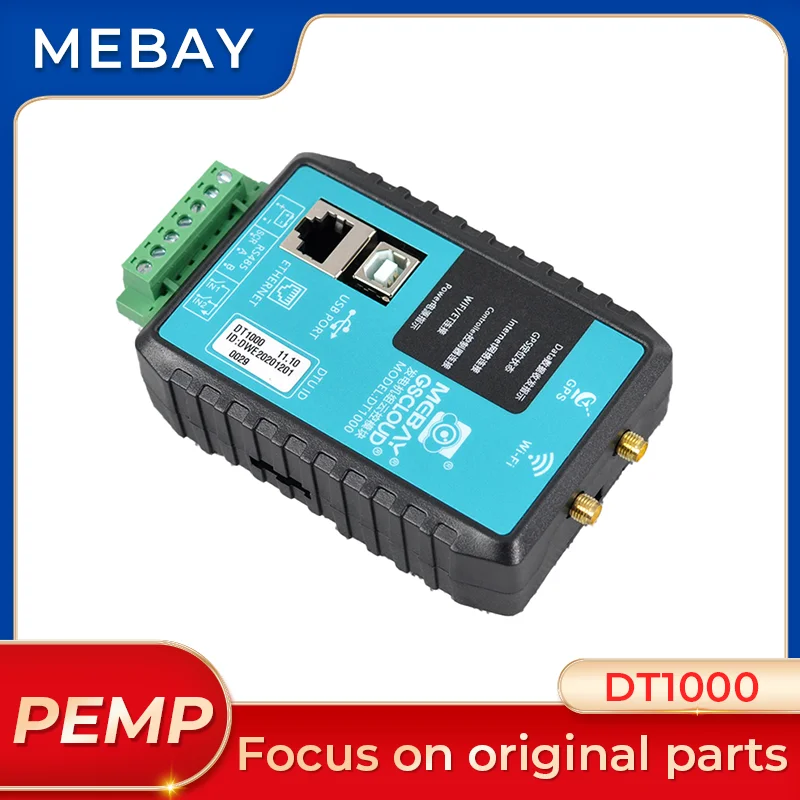

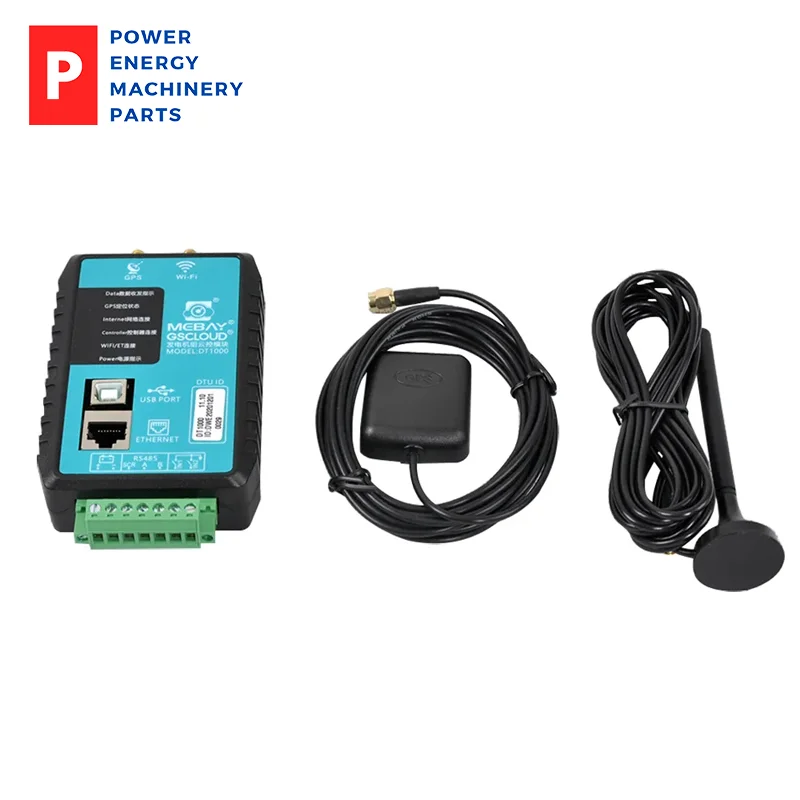

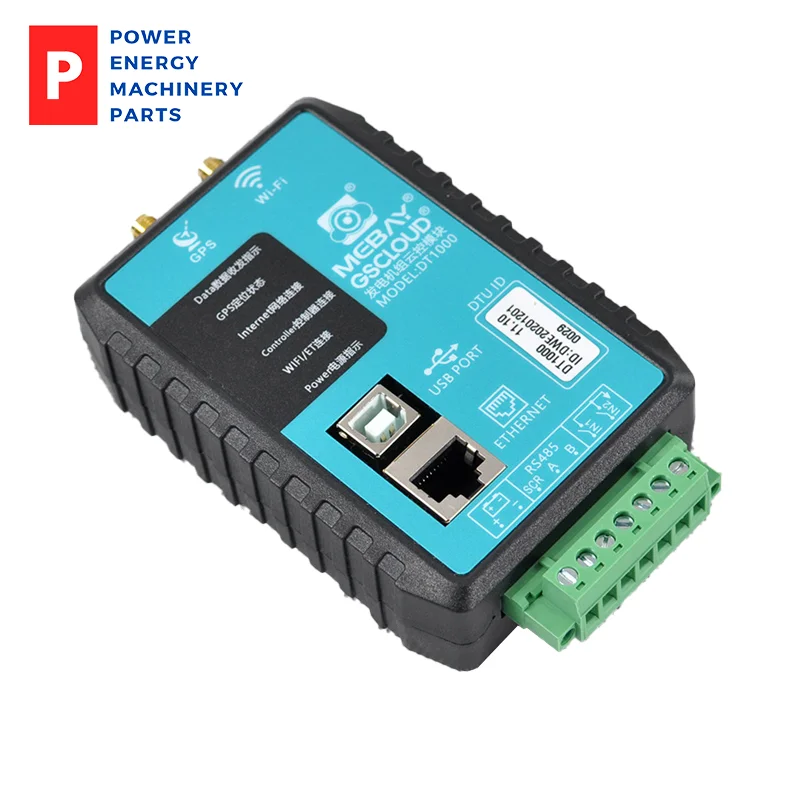

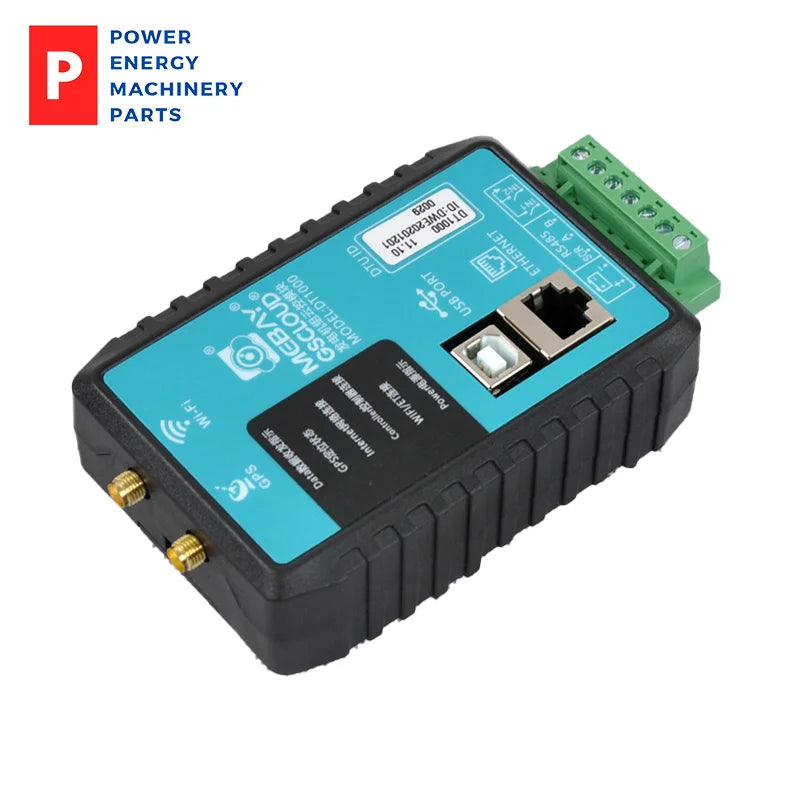

Genuine DT1000 Mebay Remote Control Generator Controller WIFI ET 4G Cloud Module

Genuine DT1000 Mebay Remote Control Generator Controller WIFI ET 4G Cloud Module

Regular price $280.00 USD
Regular price $0.00 USD Sale price $280.00 USD
Sale Sold out
Shipping calculated at checkout.
color
Ships From

Genuine DT1000 Mebay Remote Control Generator Controller WIFI ET 4G Cloud Module


DT1000 is a data collection communication module supporting the GSCloud® generator set cloud control system developed by our company. It is a WIFI and Ethernet version. Its main function is to connect the generator set controller to the Internet to realize remote real-time monitoring of power generation on the PC and mobile APP. The unit can realize functions such as remote control of the unit, remote data monitoring, remote fault diagnosis, real-time location of the unit, maintenance and management, etc.;


It has an RS485 interface, which can realize data reading and writing operations for commonly used controls. The internal integrated GPS module can realize the positioning of the unit. The communication module adopts European-style locking terminal blocks, which are firm in wiring and easy to install.


Specifications

project

Parameters

Operating Voltage

DC8V to 36V continuous power supply

Machine power consumption

Standby: 24V: MAX 1W

Operation: 24V: MAX 5W

USB Device

Type B USB female interface

RS485

Isolated

WIFI antenna interface

Standard SMA interface (female), the antenna is an SMA interface (male) supporting 802.11b/g/n standards

Ethernet interface RJ45

RJ45 10/100Mbps adaptive network interface

Configurable switch value 1

Switch input 1, effective when grounded.

Configurable switch value 2

Switch input 2, effective when grounded.

working conditions

-25-65℃

storage conditions

-40-85℃

Dimensions

106.5mm*74mm*31mm

weight

0.15Kg
