DSE8920

7" Colour Load Share & Synchronising Control Module

The DSE8920 7" Colour Load Sharing & Synchronising Control Module has been designed to parallel single generators with a mains (utility) supply. The module offers the added flexibility of being configurable to function as a DSE8910 Auto Start Load Share Control Module for paralleling up to 32 generators with multiple mains (utility) supplies.

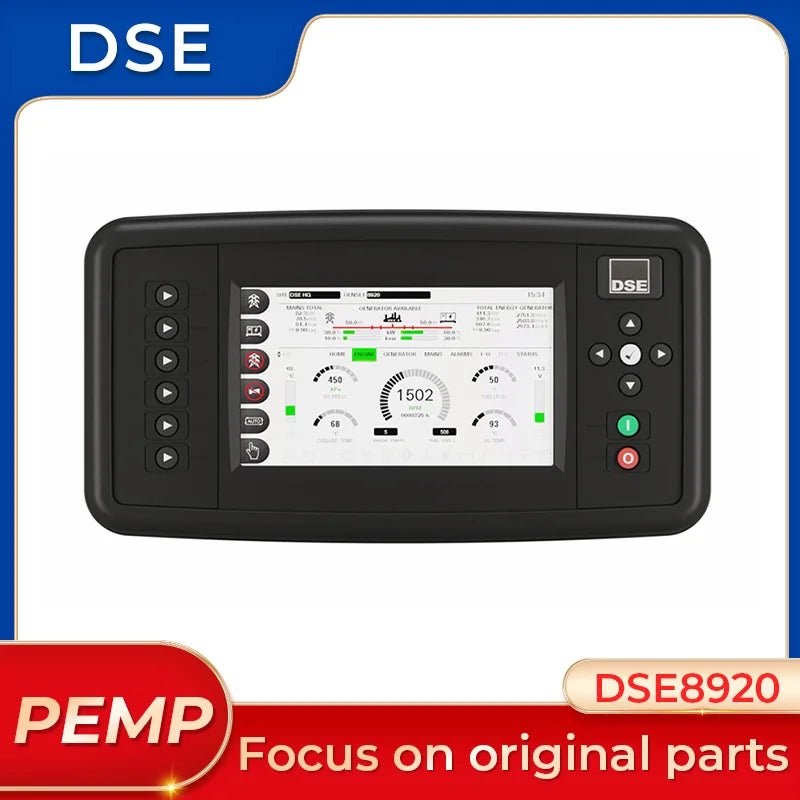

Key features of the module include a full colour 7" optically bonded display, 800 x 480 pixel graphical user interface, built-in AVR, governor and CAN control, Two types of KW/VAr sharing support and drag & drop advanced PLC editor.

OVERALL SIZE
310 mm x 162 mm x 51 mm (12.2" x 6.4" x 2.0")
PANEL CUTOUT SIZE
282 mm x 136 mm (11.1" x 5.4")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
WEIGHT
1.0 kg
PRODUCT VARIANTS
8920-01 - 8910 7" Colour Load Share & Synchronising Control Module
