Genuine DC72DR MK2 Mebay Generator Controller LCD Display Auto Start Control Module Diesel Genset Parts

Genuine DC72DR MK2 Mebay Generator Controller LCD Display Auto Start Control Module Diesel Genset Parts

This series of controllers is specially designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline, and gas generator sets and has parameter setting functions.

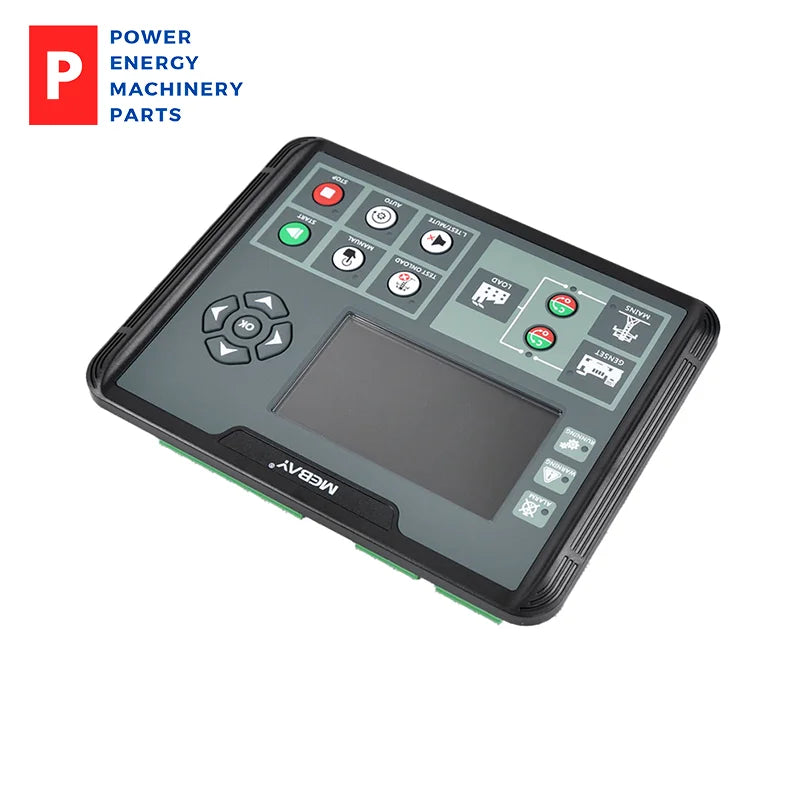

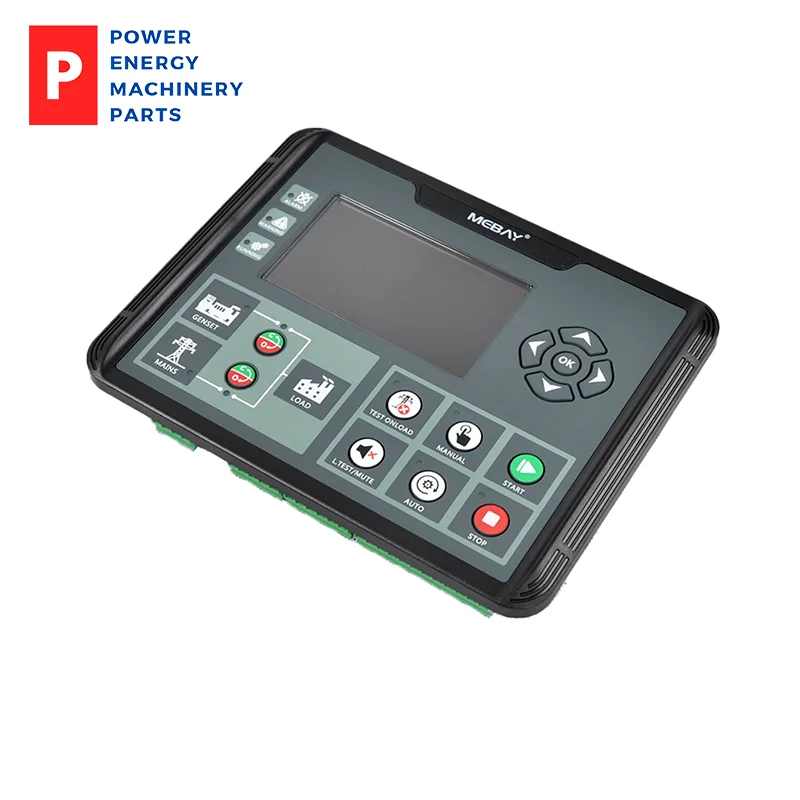

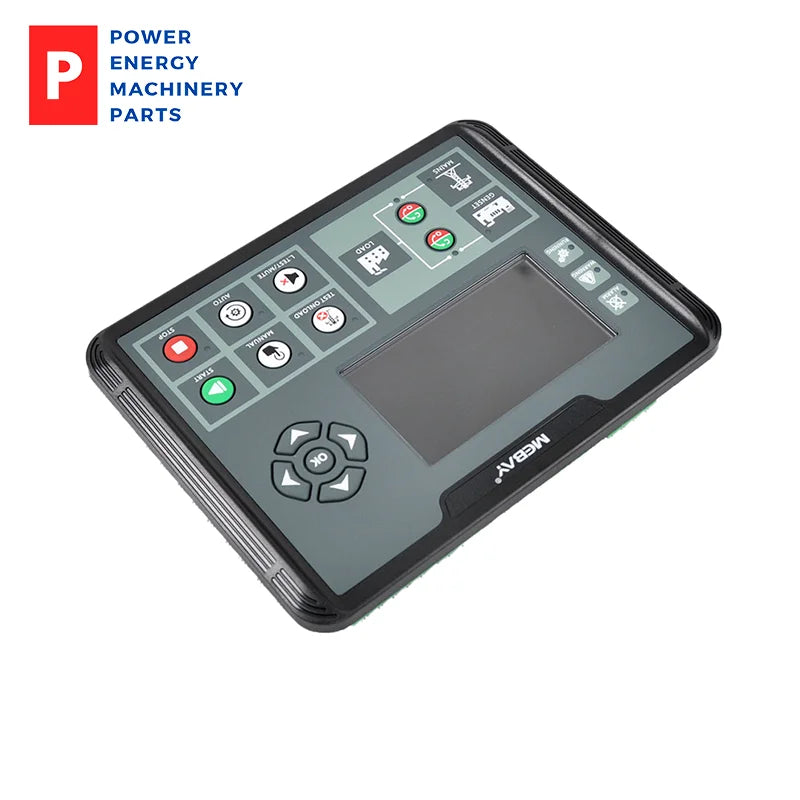

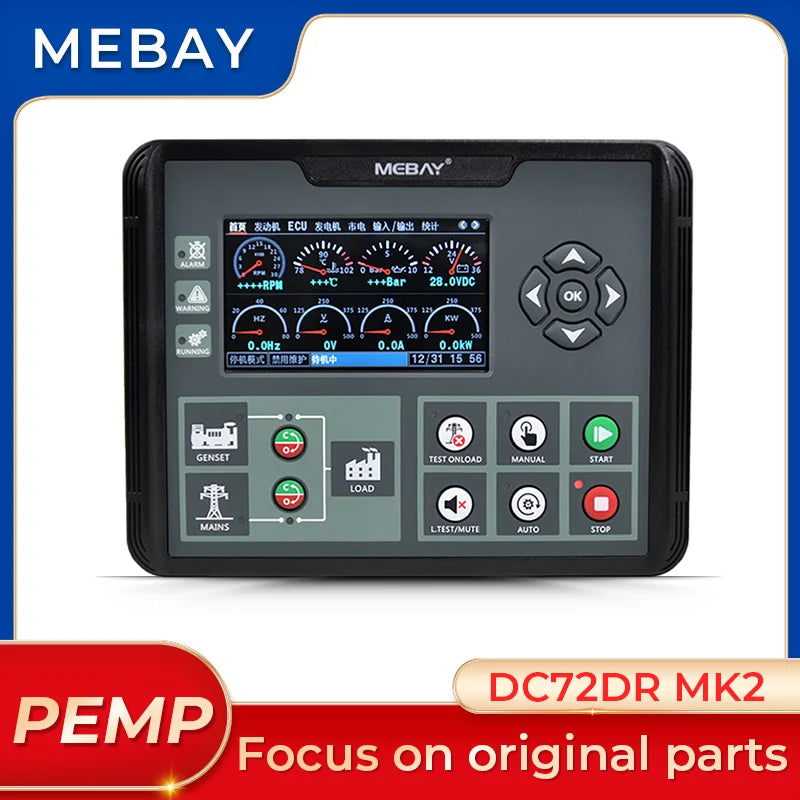

This controller uses a 4.3-inch TFT color large-screen LCD to display relevant parameters of the generator set. It has a new and original UI design. The parameters are displayed through analog pointers and numbers. The LCD screen can display multiple current fault states at the same time, and can effectively implement protective shutdown when the generator set is not working properly.

The controller has built-in display interfaces in Simplified Chinese and English, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the buttons on the controller panel, or adjusted and monitored using a PC through the USB port or RS485 interface. It can be widely used in various types of generator set automation systems.

Performance and features

The DC7xD series is available in four models:

DC70D: used for stand-alone automation, controlling the automatic starting and stopping of the generator set through remote start signals;

DC72D: Based on DC70D, it adds mains monitoring and mains/generation automatic switching control (AMF) functions, and is suitable for single-machine automation systems consisting of one mains supply and one generator set.

DC70DR: Add RS485 interface on the basis of DC70D;

DC72DR: Add RS485 interface on the basis of DC72D;

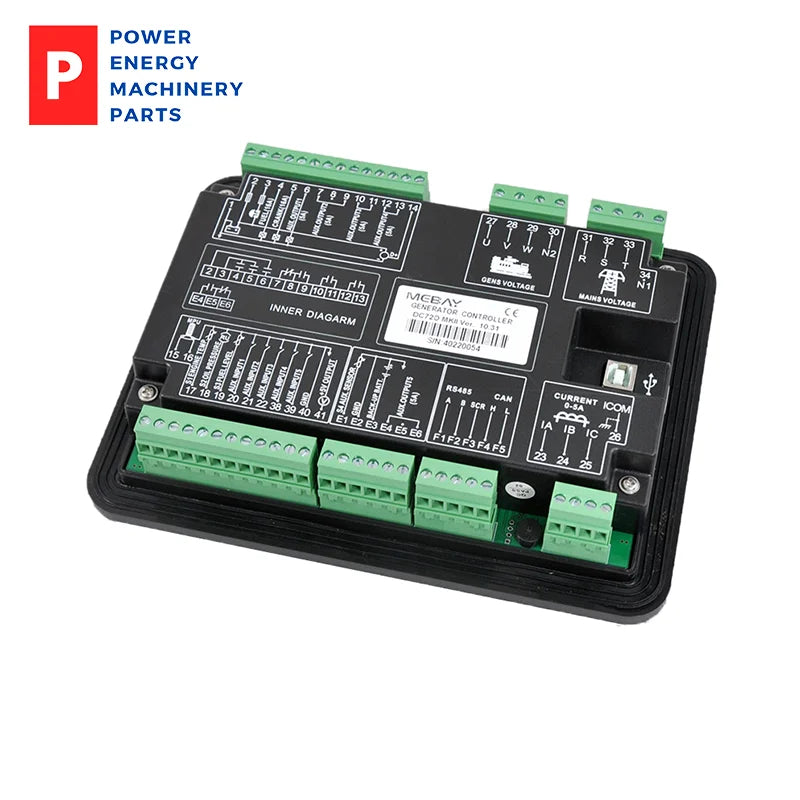

Specifications

project

Parameters

Operating Voltage

DC8V to 36V continuous power supply

Machine power consumption

Standby: 24V: MAX 1W

Operation: 24V: MAX 5W

AC voltage input

One phase two wires 30VAC-276VAC (ph-N)

Two-phase three-wire 30VAC-276VAC (ph-N)

Three-phase four-wire 30VAC-276VAC (ph-N)

Engine speed signal range

200-10000Hz

Maximum cumulative running time

99999.9 hours (minimum storage time 6 minutes)

fuel output

16Amp DC+VE supply voltage output

Motor output

16Amp DC+VE supply voltage output

Configurable relay 1

5Amp DC+VE supply voltage output

Configurable relay 2

5Amp passive contact, one normally open and one normally closed output

Configurable relay 3

5Amp passive contact normally open output

Configurable relay 4

5Amp passive contact normally open output

Configurable relay 5

5Amp passive contact, one normally open and one normally closed output

Excitation output

Maximum 1Amp DC+VE supply voltage output

Switch input

Effective when connected to the negative pole of the battery

working conditions

-25-65℃

storage conditions

-40-85℃

Protection level

IP54: When a waterproof ring is installed between the controller and the control panel.

Dimensions

210mm*160mm*50mm

Hole Size

186mm*142mm

weight

0.85Kg
