Genuine ATS520IR MEBAY Automatic Transfer Switch Controller ATS Controller Supports Energy Measurement RS485

Genuine ATS520IR MEBAY Automatic Transfer Switch Controller ATS Controller Supports Energy Measurement RS485

This series of controllers is a dual-channel power switching controller, a dual-power intelligent switching module with programmable functions, automated measurement and control, and LCD display.

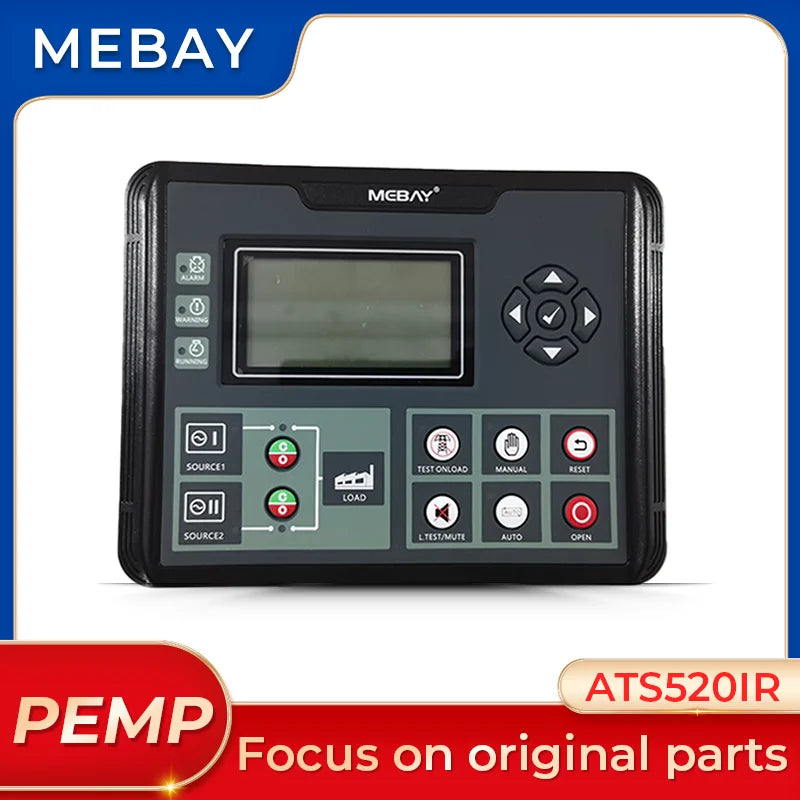

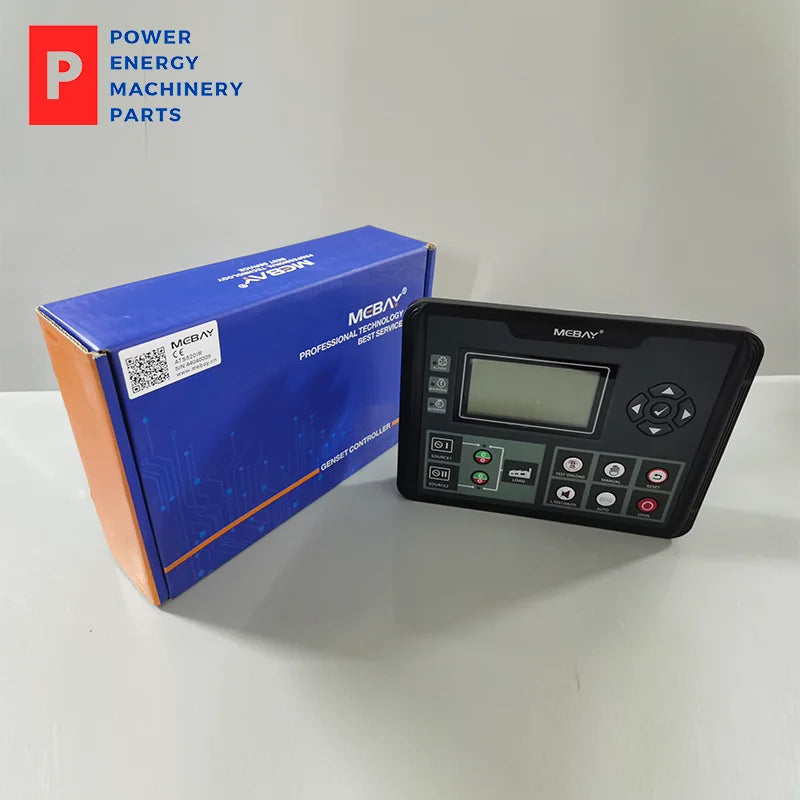

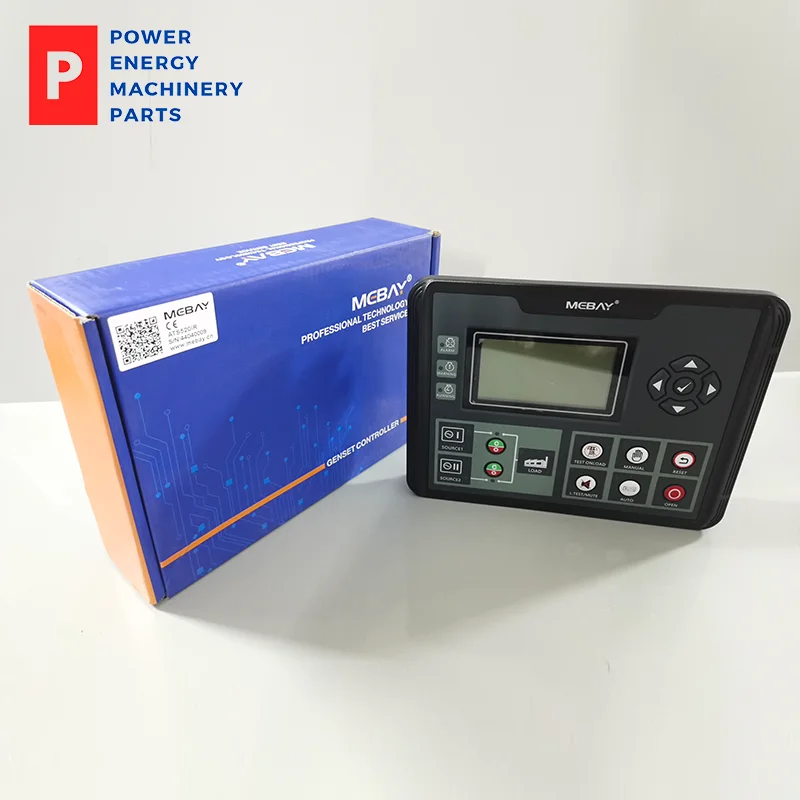

This controller uses a 3.5-inch 240*128 large-screen high-resolution LCD display with a new and original UI design. The controller has built-in display interfaces in Simplified Chinese and English, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the buttons on the controller panel, or adjusted and monitored using a PC through the USB port or RS485 interface. It can be widely used in various types of power systems.

Performance and features

The ATS520 series has four models:

ATS520: dual power supply intelligent switching module;

ATS520I: Adds power measurement function based on ATS520;

ATS520R: Add RS485 interface on the basis of ATS520;

ATS520IR: Adds power measurement and RS485 functions on the basis of ATS520;

Specifications

project

Parameters

Operating Voltage

DC 8V to 36V continuous power supply

AC 90 to 280V AC voltage (L1N1/L2N2)

Machine power consumption

Standby: 24V: MAX 2W

Operation: 24V: MAX 6W

Generation input

One phase two wires 30VAC-369VAC (L-N)

Two-phase three-wire 30VAC-625VAC(L-L)

Three-phase three-wire 30VAC-625VAC(L-L)

Three-phase four-wire 30VAC-625VAC (L-L)

Mains power input

One phase two wires 30VAC-369VAC (L-N)

Two-phase three-wire 30VAC-625VAC(L-L)

Three-phase three-wire 30VAC-625VAC(L-L)

Three-phase four-wire 30VAC-625VAC (L-L)

Maximum cumulative running time

99999.9 hours (minimum storage time 6 minutes)

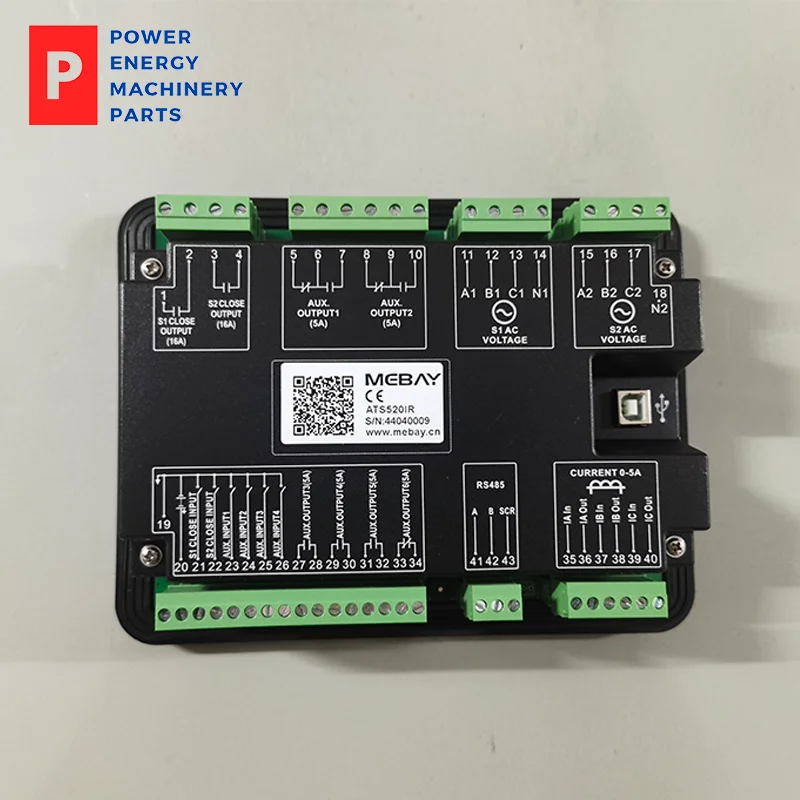

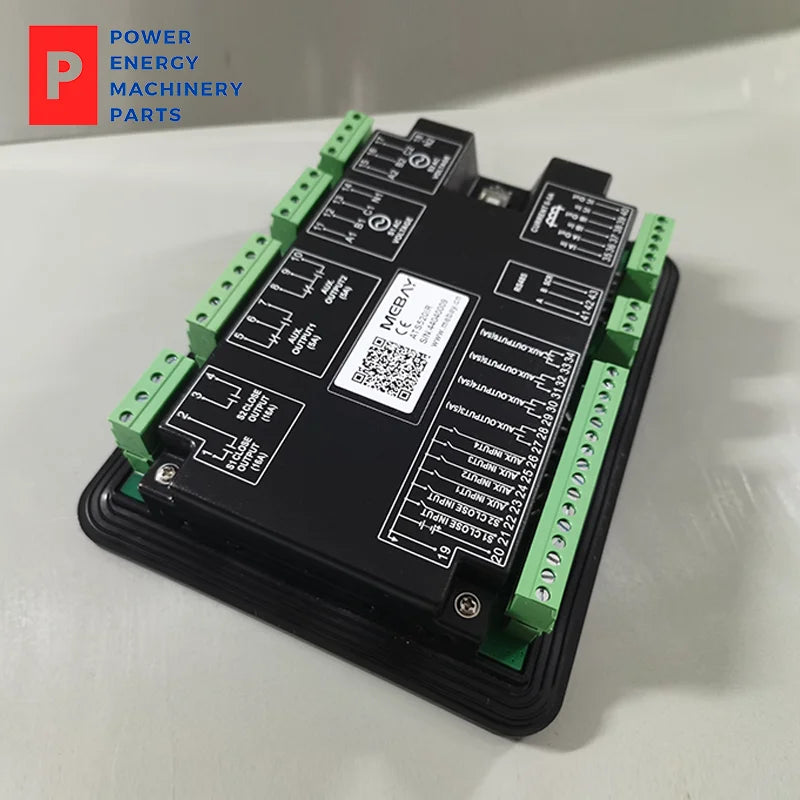

S1 closing output

16Amp AC250 passive output

S2 closing output

16Amp AC250 passive output

Configurable outputs 1-6

10Amp passive output (contact type can be set)

Switch input

Effective when connected to the negative pole of the battery

working conditions

-20-70℃

storage conditions

-30-80℃

Protection level

IP54: When a waterproof ring is installed between the controller and the control panel.

Insulation level

When AC2.2kV voltage is applied between the AC high-voltage terminal and the low-voltage terminal, the leakage current shall not exceed 3mA within 1 minute.

Dimensions

210mm*160mm*50mm

Hole Size

186mm*142mm

weight

0.85Kg
