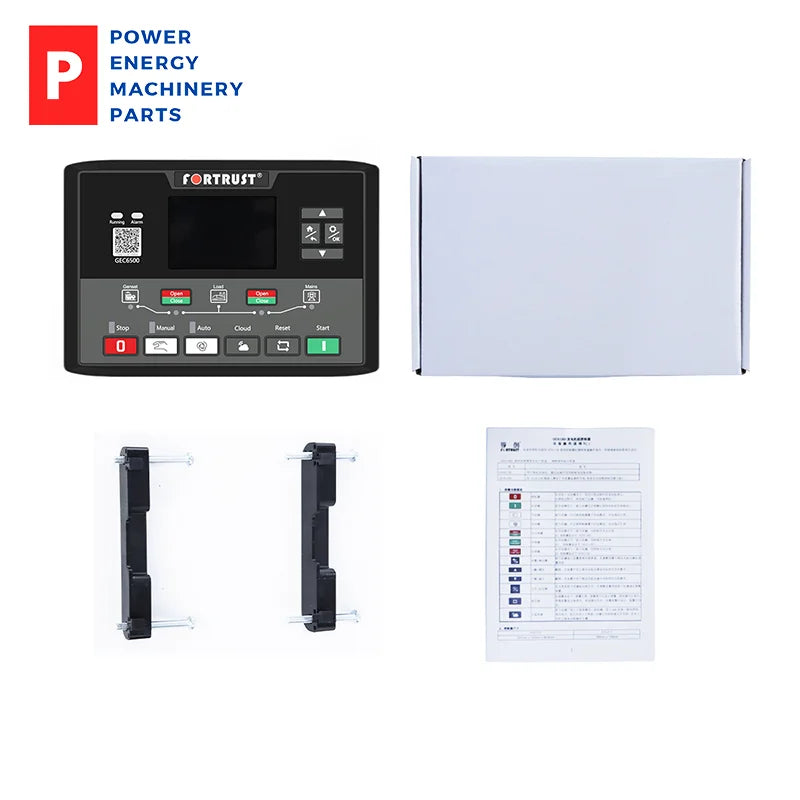

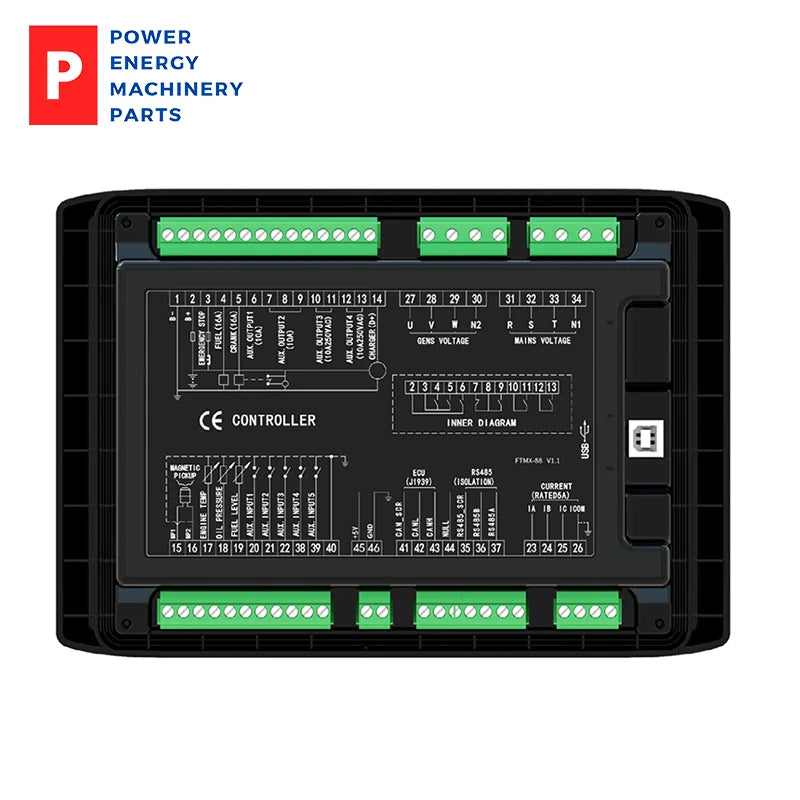

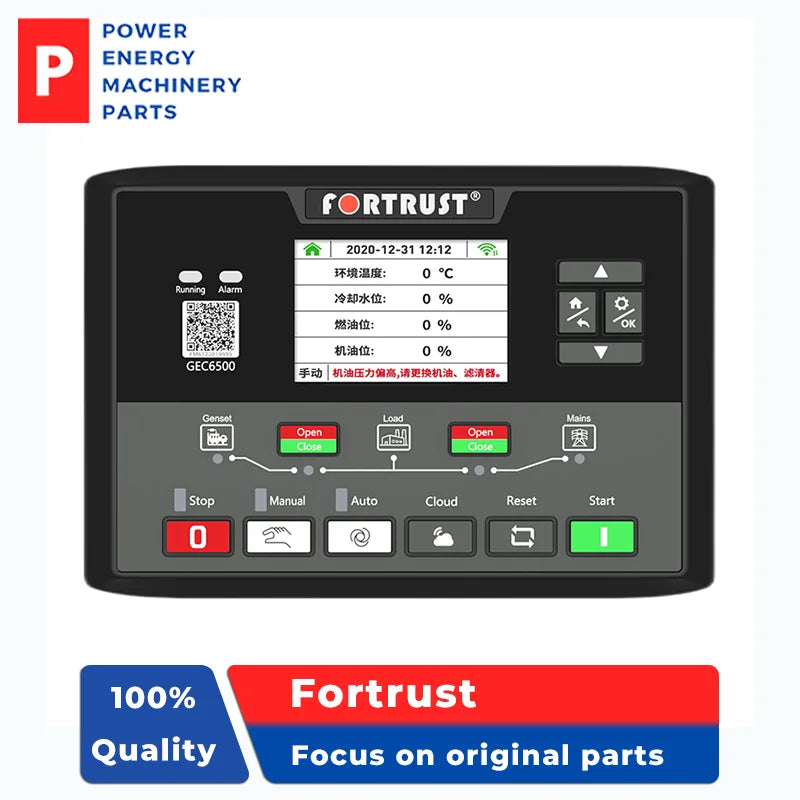

GEC6520-485 Original diesel engine automation controller rs485 LCD Screen Module

GEC6520-485 Original diesel engine automation controller rs485 LCD Screen Module

Working voltage: DC 8V-35V continuous power supply

Overall power consumption: <3W (≤2W in standby)

Alternator voltage input:Three-phase four-wire: 15VAC-360VAC (ph-N)Single-phase two-wire 15VAC-360VAC (ph-N)Two-phase three-wire 15VAC-360VAC (ph-N)

Alternator frequency: 50Hz/60Hz

Speed sensor voltage: 1.0V to 24V (effective value)

Speed sensor frequency: maximum 10000Hz

Starting relay output: 16Amp DC28V DC

power supply outputFuel relay output: 16Amp DC28V DC

power supply outputProgrammable relay output 1-4:10Amp DC30V DC

power supply output10Amp DC30V passive output/250VAC passive output10Amp DC30V passive output/250VAC passive output10Amp DC30V passive output/250VAC

passive outputOperation panel size: 197mmx152mm x51mm

Recommended hole size: 184mm x138mm(Module size 183mm x137mm)

Current transformer secondary current: Rated: 5A

Working conditions: temperature (-25~70)℃ humidity (20~90)%

Storage conditions: temperature (-30~+80)℃

Protection level: IP55 (when installed between the controller and control panelWaterproof rubber ring)

IP42 (when there is noWhen installing a waterproof rubber ring)

Dielectric strength: Object: Between input/output/power

supplyReference standard: IEC688-1992Test method: AC1.5KV/1min leakage current 3mA
