1. Overview:

This series of controllers is designed for the start, stop, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets and has parameter setting functions.

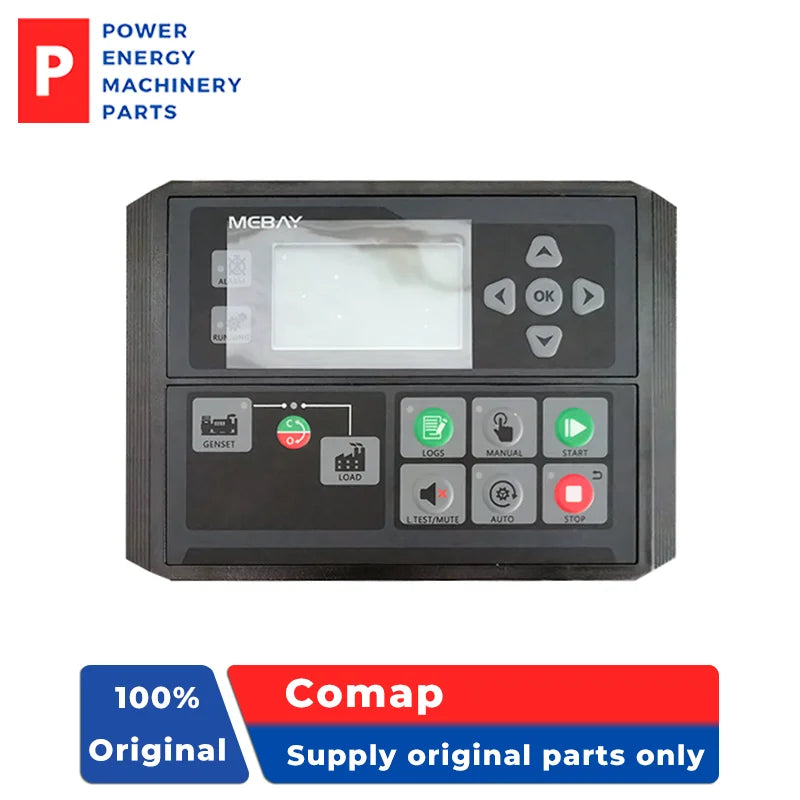

This controller uses a 3.0-inch large-screen dot matrix LCD to display the relevant parameters of the generator set. The LCD screen can simultaneously display multiple current fault states, and can effectively implement protective parking when the generator set is not working properly.

The controller has built-in display interfaces such as simplified Chinese and English, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the controller panel buttons or adjusted and monitored using a PC through a USB or RS485 interface (equipped with some models). It can be widely used in various types of generator set automation systems.

2. Performance and characteristics

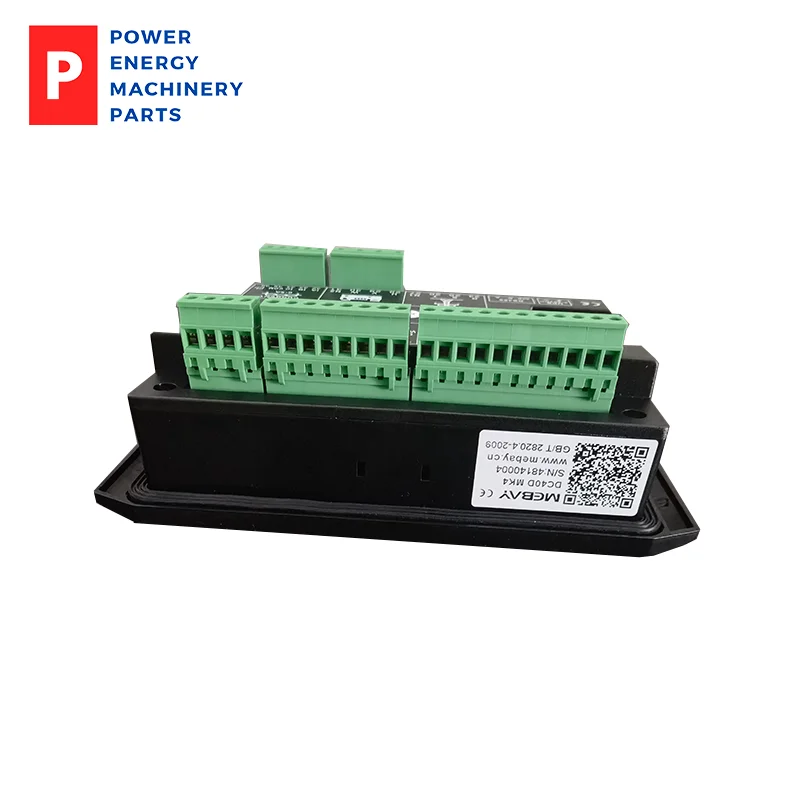

DC40D MK4 series model description

Parameters and specifications

Working voltage: DC8V to 36V continuous power supply

Power consumption of the whole machine

Standby: 24V: MAX 1W

Working: 24V: MAX 5W

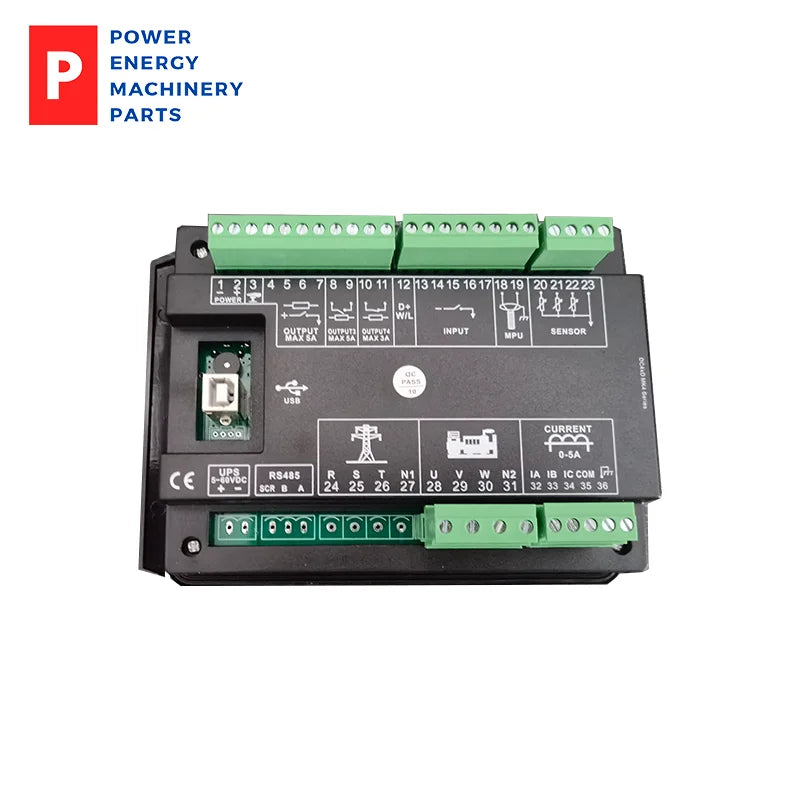

AC voltage input

One-phase two-wire 30VAC-360VAC (ph-N)

Two-phase three-wire 30VAC-360VAC (ph-N)

Three-phase four-wire 30VAC-360VAC (ph-N)

Engine speed signal range: 1 -10000Hz

Maximum cumulative running time: 99999.9 hours (minimum storage time 6 minutes)

Fuel output: Max 5Amp DC + VE power supply voltage output

Motor output: Max 5Amp DC + VE power supply voltage output

Configurable output 1: Max 5Amp DC + VE power supply voltage output

Configurable output 2: Max 5Amp DC + VE power supply voltage output

Configurable output 3: Max 5Amp passive normally open output

Configurable output 4: Max 3Amp Passive normally closed output

Excitation output: DC + VE power supply voltage output

Switch input: valid when connected to the negative pole of the battery

Battery pack voltage input: 0-100VDC (only available on DC42DR-ABF MK4)

USB interface: Type-B

RS485 interface: isolated, Modbus-RTU protocol

Working conditions: -25-65℃

Storage conditions: -40-85℃

Protection level: IP65: when a waterproof ring is installed between the controller and the control panel.

Insulation level: When AC2.2kV voltage is applied between the AC high voltage terminal and the low voltage terminal, the leakage current is not more than 3mA within 1min.

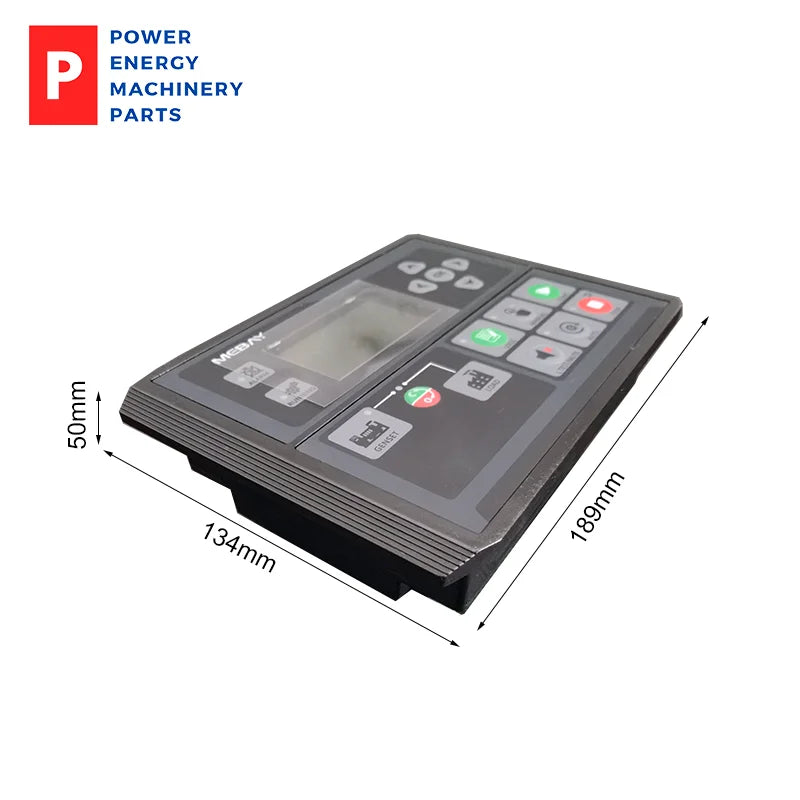

Dimensions: 189mm×134mm×50mm

Opening size: 160mm×120mm

Weight: 0.68Kg
