Brand New GV13T Original MEBAY Ammeter for the generator Digital Voltmeter Frequency LED Display AC220V

GV13T digital display generator instrument

Module overview

GV13T is a lightweight, low-cost module used to measure and display generator voltage, frequency, and running time. It can replace traditional pointer meters and achieve multiple uses in one meter. The module is fixed with conventional bolts, which is safe, convenient and strong.

Features

Able to measure voltage, frequency, accumulated running time, and current running time at the same time

4-digit high-brightness LED digital tube displays measured values

With screen changing button;

No external working power supply is required;

220V, 380V AC system is optional.

Parameter display

Phase voltage V

Frequency Hz

Accumulated running time H

Current running time R

Range and accuracy

Voltage:

AC185～265V (220VAC system), error ≦±1%

AC370～440V (380VAC system) error ≦±1%

Frequency: 40-70HZ, error ≦±0.5%

Accumulated running time: 0-9999H

Specifications

Working power supply:

AC185～265V (220VAC system)

AC370～440V (380VAC system)

Power consumption: MAX: 1 W

Operating temperature range: -20℃ ~ 65℃

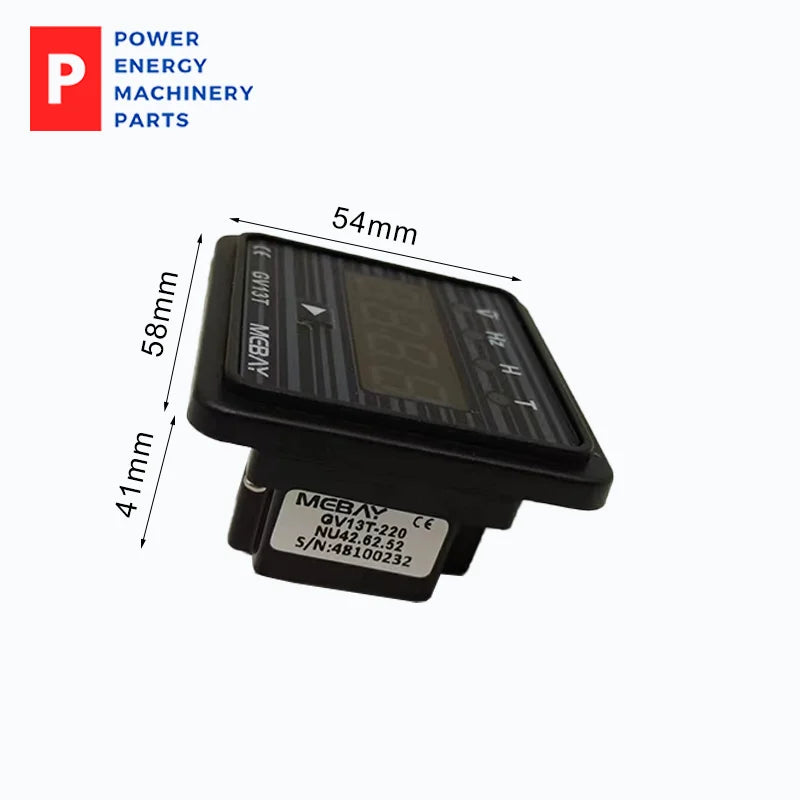

Volume size (W * H * D): 58mm * 54mm * 41mm

Installation opening (W * H): 47mm * 37mm

Weight: 50g
