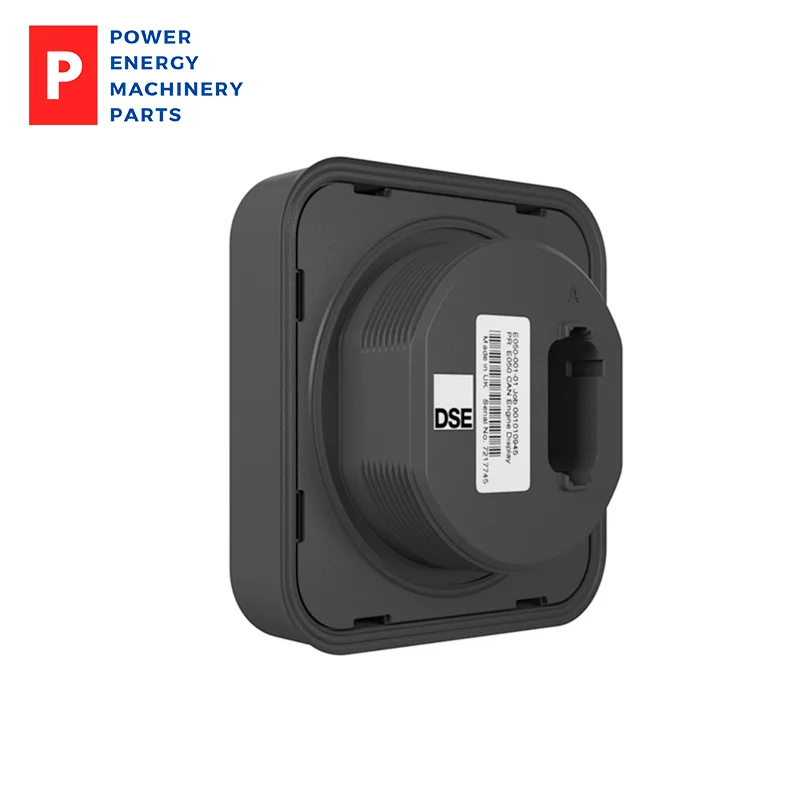

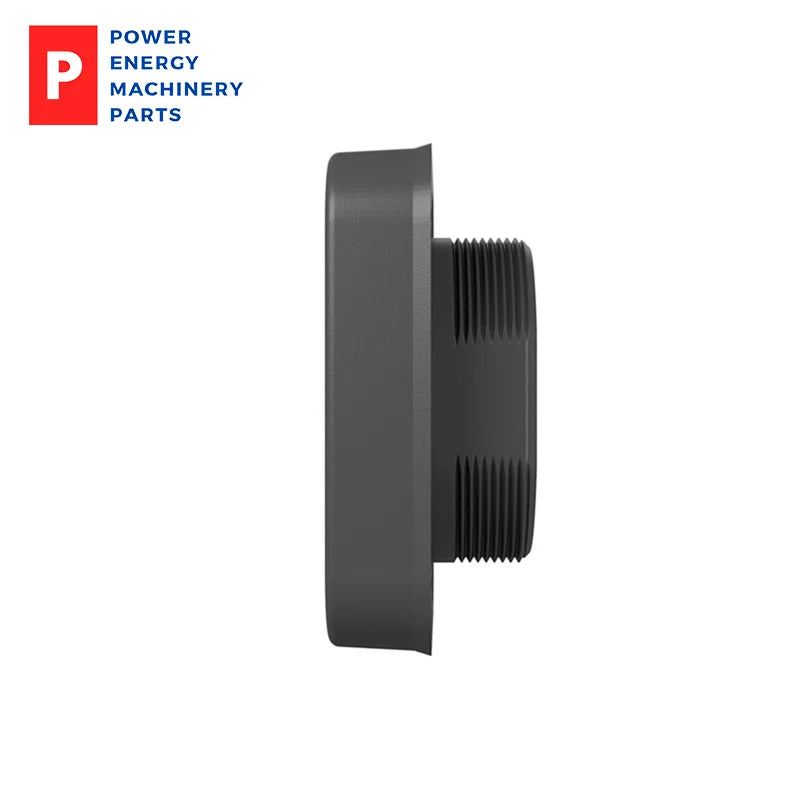

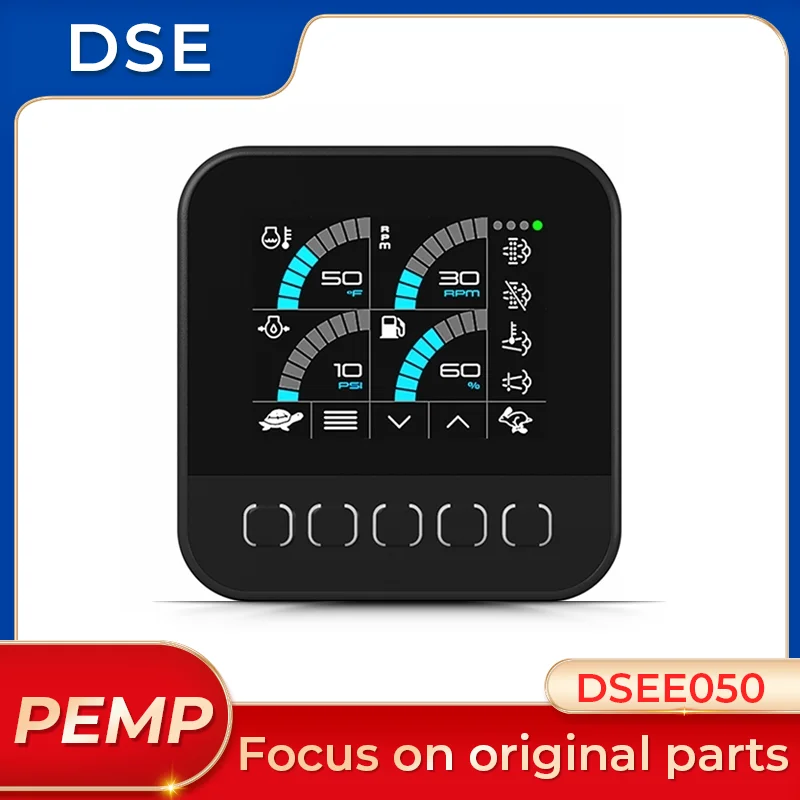

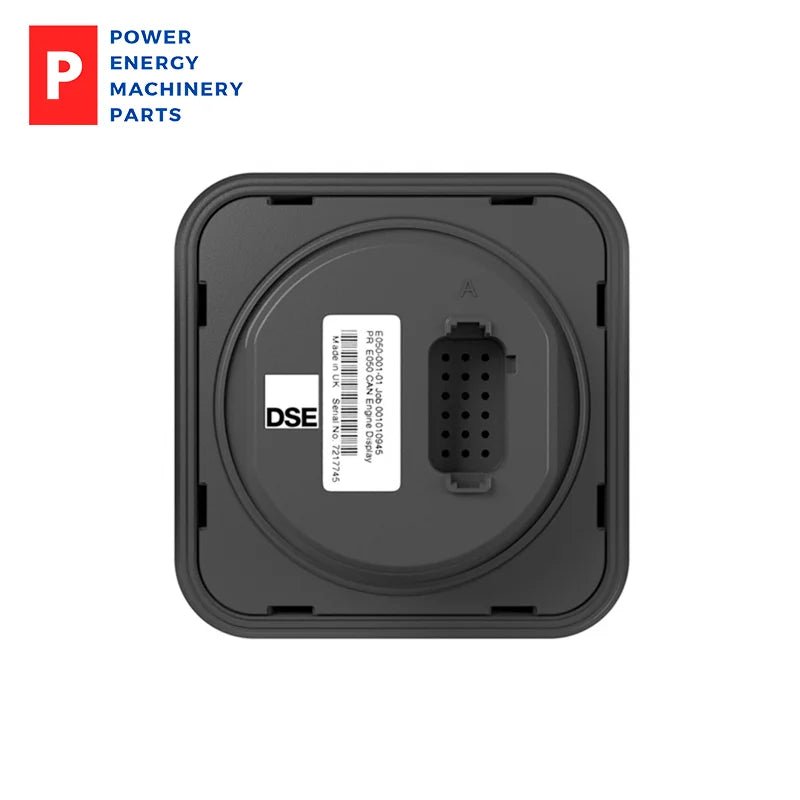

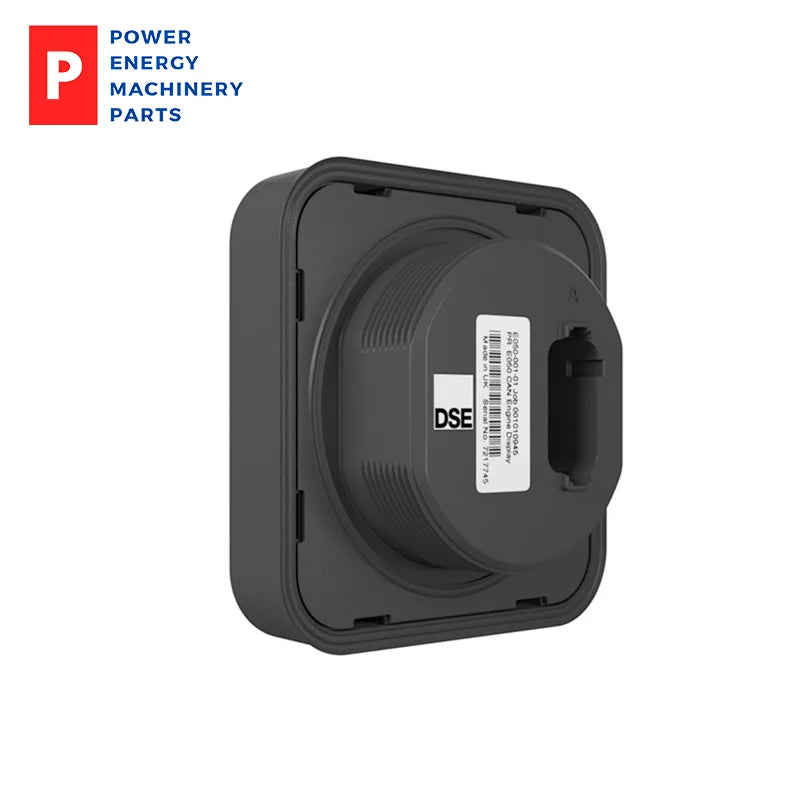

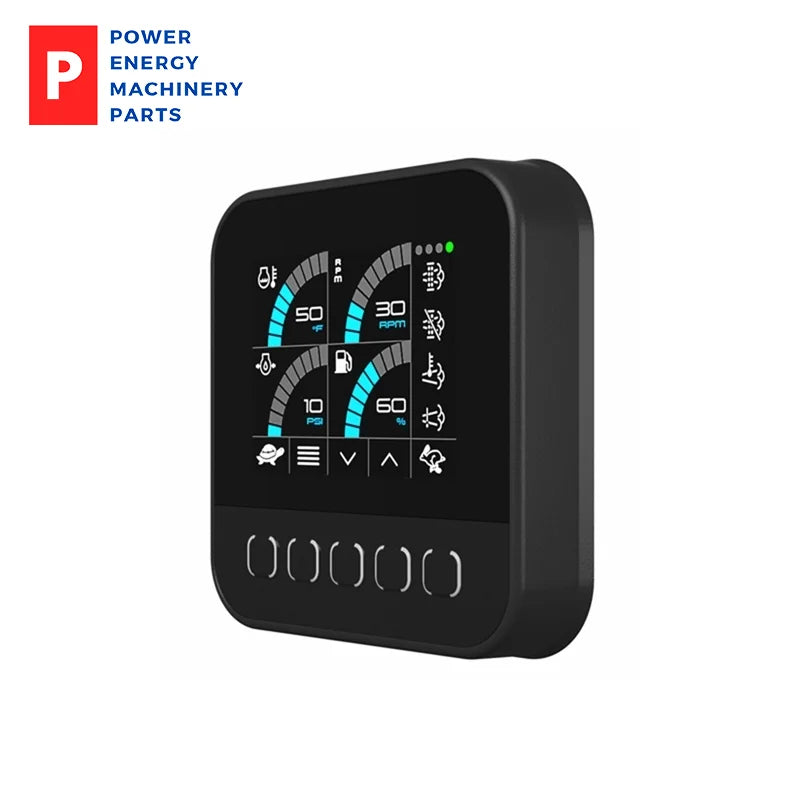

Genuine Deep Sea DSEE050 eView® Engine Display Genset Controller DSE E050 050

Genuine Deep Sea DSEE050 eView® Engine Display Genset Controller DSE E050 050

DSEE050

eView® Engine Display

The eView® DSEE050 is a fully configurable colour engine display and controller designed to meet the demands of modern electronic engines and equipment applications. The DSEE050 supports J1939 electronics engines including Tier 4 final and stage V engine parameters and supports TSC 1 messaging allowing speed control messages to be sent over CAN.

The engine display is an extremely powerful and versatile product suited to a wide number of different application environments. The DSEE050 is fully configurable using the licence-free DSE Configuration Suite software, which allows users to create custom configurations, event sequences and user interface screens. Users can also add company branding to the displays start-up screen and select from a light and dark background when the module is in use.

OVERALL SIZE
112.5mm x 115 mm x 49 mm (4.43" x 4.53" x 1.93")
PANEL CUT OUT
80 mm / 3.15" Diameter
PRODUCT VARIANTS
E050-01 - eView® Engine Display
